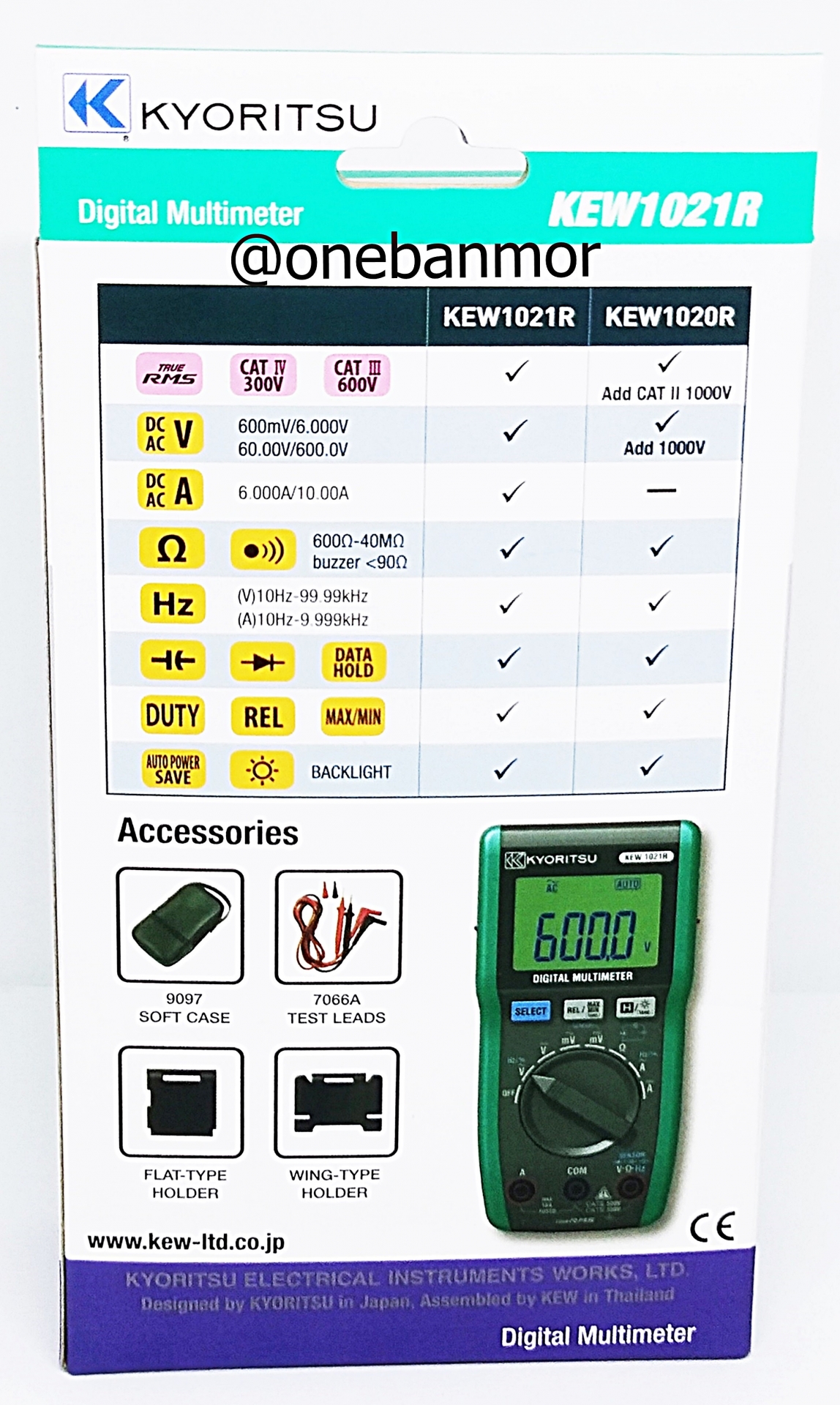

รุ่นใหม่ล่าสุด มาก่อนใคร วัดค่าแม่นยำ Digital Multimeter Kyoritsu 1021R TRUE RMS - แถมกระเป๋าหนังใส่มิเตอร์

รุ่นใหม่ล่าสุด มาก่อนใคร วัดค่าแม่นยำ Digital Multimeter Kyoritsu 1021R TRUE RMS - แถมกระเป๋าหนังใส่มิเตอร์

รุ่นใหม่ ทนทาน แม่นยำ รับประกัน 1 ปี














•
Elegant and easy-to-use cabinet


•
Large display with 6000 counts and Backlight


•
Enhanced current measuring function using an external clamp sensor


•
Two detachable holders, flat and wing type


•
Accurate reading with True RMS


•
Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V























































DC V
6.000/60.00/600.0V (auto range)|±0.5%rdg|±3dgt


DC mV
600.0mV|±1.5%rdg|±3dgt


DC Clamp Sensor
60.00/200.0A (auto range)|±1.5%rdg|±3dgt + Sensor accuracy


AC V
6.000/60.00/600.0V (auto range)|±1.0%rdg|±3dgt [40 - 500Hz]


AC mV
600.0mV|±2.0%rdg|±3dgt [40 - 500Hz]


AC Clamp Sensor
60.00/200.0A (auto range)|±2.0%rdg|±3dgt + Sensor accuracy [40 - 500Hz]


DC A
6.000/10.00A (auto range)|±1.5%rdg|±3dgt


AC A
6.000/10.00A (auto range)|±1.5%rdg|±3dgt[45 - 500Hz]


Ω
600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range)|±0.5%rdg|±4dgt (600Ω),|±0.5%rdg|±2dgt (6/60/600kΩ/6MΩ)|±1.5%rdg|±3dgt (40MΩ)


Continuity buzzer
600Ω (Buzzer sounds below 90Ω)


Diode test
2.0V Release Voltage: Approx.


Capacitance
60.00/600.0nF/6.000/60.00/600.0/1000µF|±2.0%rdg|±5dgt (60/600nF)|±5.0%rdg|±5dgt (6/60/600/1000µF)


Frequency
ACV 99.99/999.9Hz/9.999/99.99kHz |±0.1%rdg|±3dgtACA 99.99/999.9Hz/9.999kHz |±0.1%rdg|±3dgt


DUTY
10 - 90% |±1.0%rdg|±3dgt [50/60Hz]


Applicable standards
IEC 61010-1 CAT IV 300V / CAT III 600VIEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC)


Power source
R03 (1.5V) × 2


Dimensions
155(L) × 75(W) × 40(D)mm


Weight
250g Approx. (including batteries)


Accessories
Wing-type holder, Flat-type holder, 7066A (Test leads),8919 (Ceramic fuse [10A/600V]) × 1 (included),9097 (Carrying case), R03 × 2, Instruction manual


Optional Accessories
7234 (Alligator clip), 8161 (AC clamp sensor)8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)
