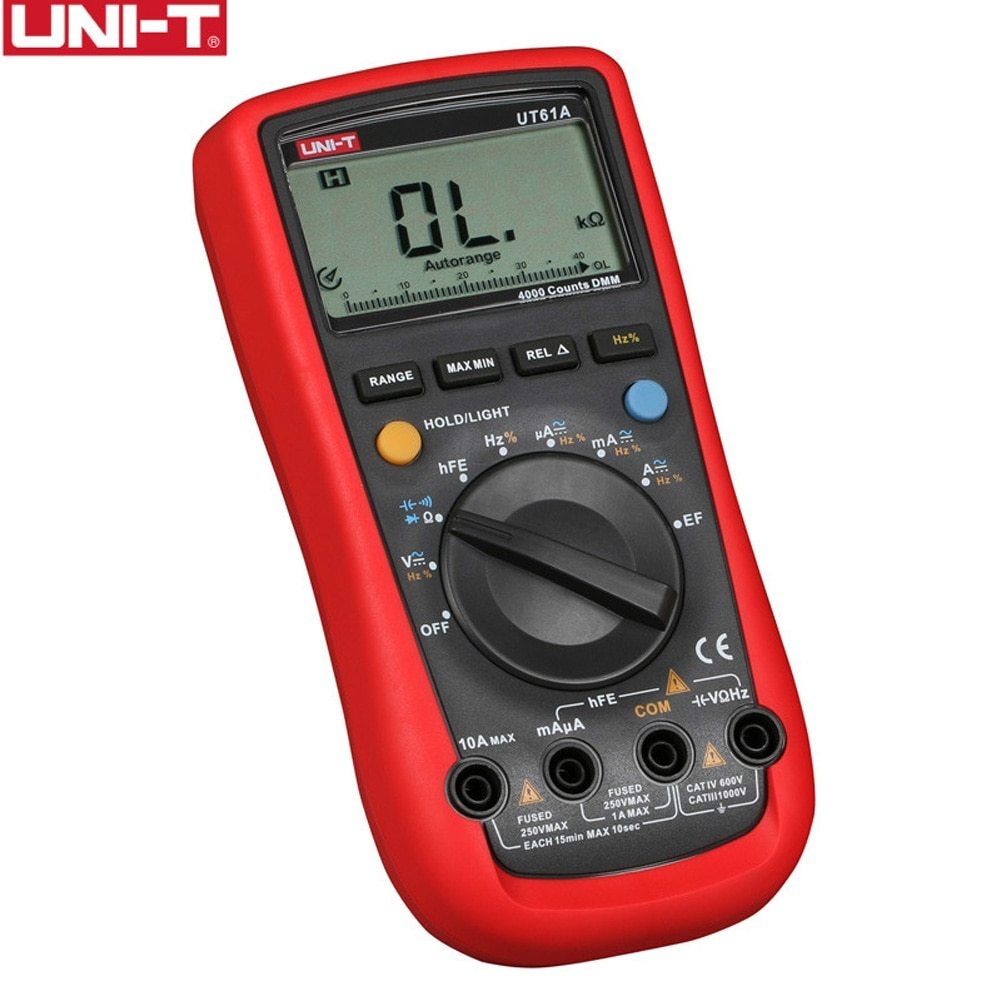

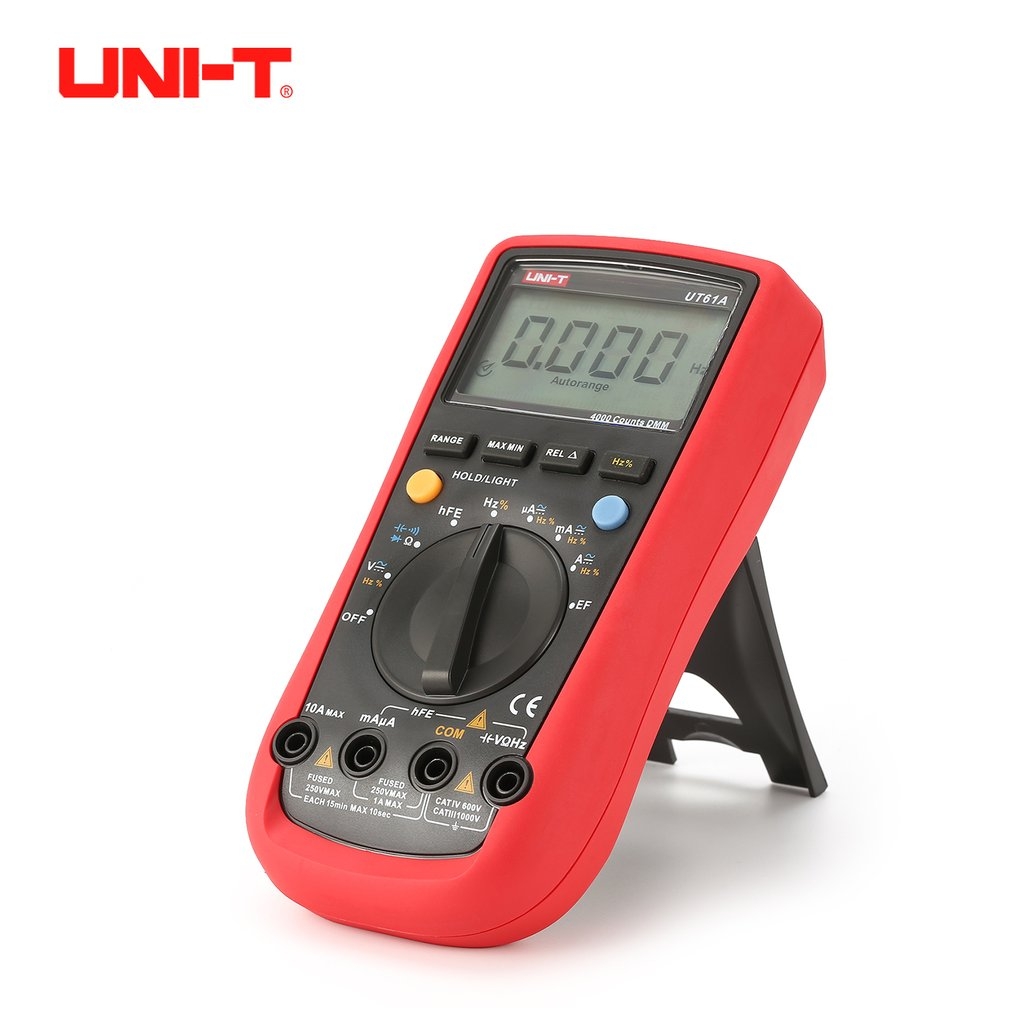

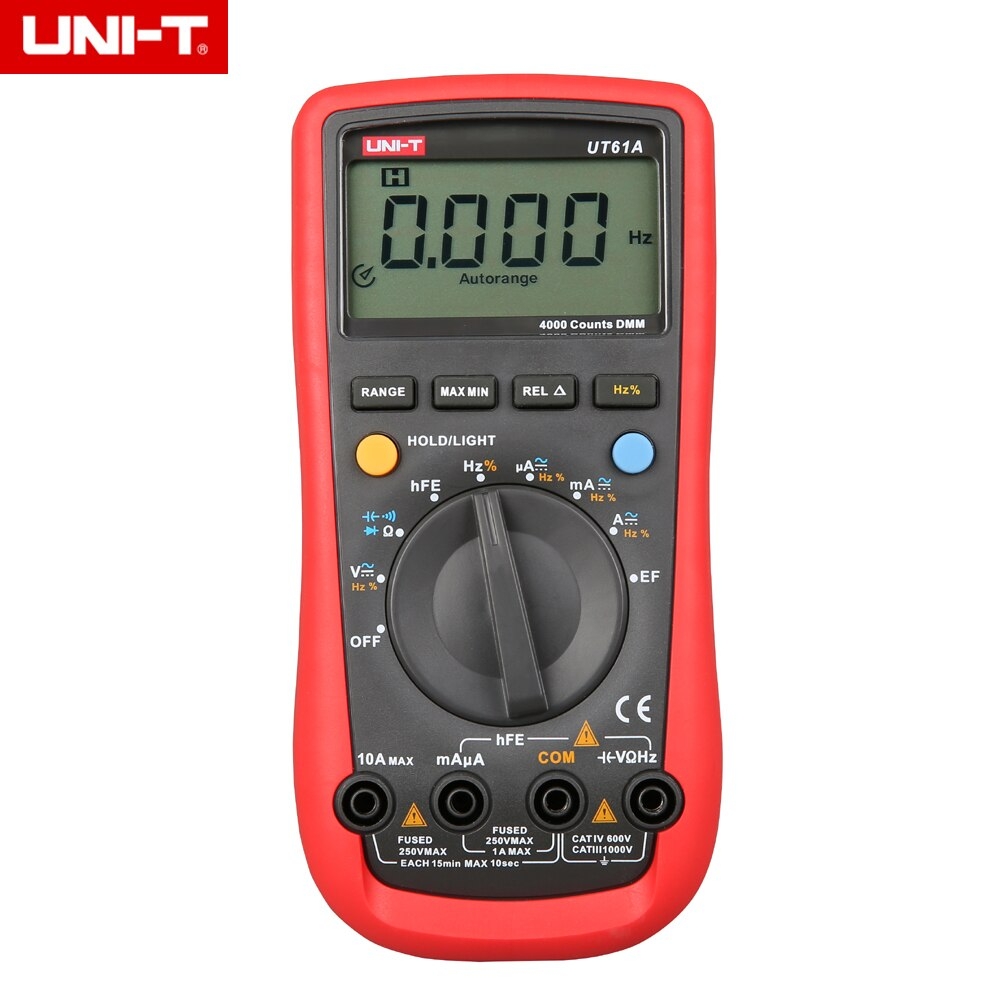

UT61A Modern Digital Multimeter

Specifications
Range
UT61A
UT61B
UT61C
UT61D
UT61E


DC voltage (V)
1000V
±(0.5%+1)
±(0.5%+1)
±(0.5%+1)
±(0.5%+1)
±(0.1%+2)


AC voltage (V)
750V
±(1%+3)
±(1%+3)
±(1%+3)
±(1%+3)
±(0.8%+10)


DC current (A)
10A
±(1%+2)
±(1%+2)
±(1%+3)
± (1%+3)
±(0.5%+10)


AC current (A)
10A
±(1.2%+5)
±(1.2%+5)
±(1.2%+5)
±(1.2%+5)
±(0.8%+10)


Resistance (Ω)
40MΩ
±(1%+2)
±(1%+2)





60MΩ


±(1%+2)
±(1%+2)



220MΩ




±(0.5%+10)


Capacitance (F)
4000μF
±(3%+5)
±(3%+5)
±(3%+5)
±(3%+5)



220mF




±(3%+5)


Frequency (Hz)
10Hz~10MHz
±(0.1%+4)
±(0.1%+4)
±(0.1%+4)
±(0.1%+4)



10Hz~220MHz




±(0.01%+5)


Temperature
-40°C~1000°C

±(1.2%+3)
±(1.2%+3)




-40°F~1832°F

±(1.2%+4)
±(1.2%+4)




Features


Display count

4000
4000
6000
6000
22000


Bandwidth (Hz)

45Hz~400Hz
45Hz~400Hz
45Hz~1kHz
45Hz~3kHz
45Hz~10kHz


Duty cycle
0.1%~99.9%
√
√
√
√
√


General Characteristics


Power
9V battery (6F22)


Display
65mm x 43mm


Product color
Red and grey


Product net weight
370g


Product size
180mm x 87mm x 47mm


Standard accessories
Battery, test leads, multi-purpose socket, RS-232 interface cable (UT61B/UT61C/UT61D/UT61E), PC software CD (UT61B/UT61C/UT61D/UT61E), point contact temperature probe (UT61B/UT61C)


Standard individual packing
Gift box, English manual


Standard quantity per carton
22pcs


Standard carton measurement
455mm x 335mm x 375mm


Standard carton gross weight
UT61A: 12.7kg; UT61B: 13.97kg; UT61C: 13kg; UT61D: 14.5kg; UT61E: 12.9kg


Optional accessory
UT61B/UT61C/UT61D/UT61E: USB interface cable
