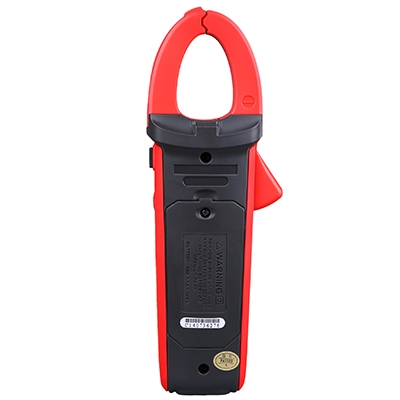

UT216C Series 600A True RMS Digital Clamp Meters ดิจิตอลแคลมป์มิเตอร์ ACA/DCA

Features
1. True RMS
2. Auto range, 3/s sampling rate
3. MAX/MIN/Relative modes
4. K-type temperature probe
5. Flashlight
6. Data hold, LCD backlight, auto power off
7. 400Hz measurement
8. NCV, non-contact AC voltage testing
9. VFC, low pass filter
10. Zeroing function
11. Inrush current
12. Analog bar graph




Specifications
Range
Best Accuracy


Model

UT216C


AC Current (A)
60A/600A
±(2.5%+5)


AC Current Frequency (Hz)

40Hz ~ 400Hz


DC Current (A)
60A/600A
±(2.5%+5)


AC Voltage (V)
6V/60V/600V/750V
±(1.2%+5)


AC Current Frequency (Hz)

40Hz ~400Hz


DC Voltage (V)
600mV/6V/60V/600V/1000V
±(0.8%+1)


Resistance (Ω)
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
±(1%+2)


Capacitance (°F)
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/60mF
±(4.0%+5)


Frequency (Hz)
10Hz~10MHz
±(0.1%+4)


Temperature (°C)
-40°C 1000°C
±(2.0%+5)


Temperature (°F)
-40°F 1832°F
±(2.0%+10)


Features


Display Count

6000


Auto Range

√


Jaw Capacity

30mm


True RMS

√


Diode
Around 3.0V
√


VFC

√


NCV

√


Data Hold

√


Relative Mode

√


MAX/MIN

√


Inrush Current

√


LCD Backlight

√


Analogue Bar Graph

61


Flashlight

√


Auto Power Off
Around 15 minutes
√


Continuity Buzzer

√


Low Battery Indication
≤3.6V
√


Input Protection

√


Input Impedance for DCV
≥10MΩ
√


General Characteristics


Power
AAA 1.5V x 3


LCD Size
38mm x 24mm


Product Color
Red and Grey


Product Net Weight
231.7g


Product Size
220mm x 75mm x 40mm


Standard Accessories
Batteries, Test Lead, Point Contact Temperature Probe


Standard Individual Packing
Gift Box, Carrying Bag, English Manual


Standard Quantity Per Carton
40pcs


Standard Carton Measurement
485mm×320mm×385mm


Standard Carton Gross Weight
20kg
