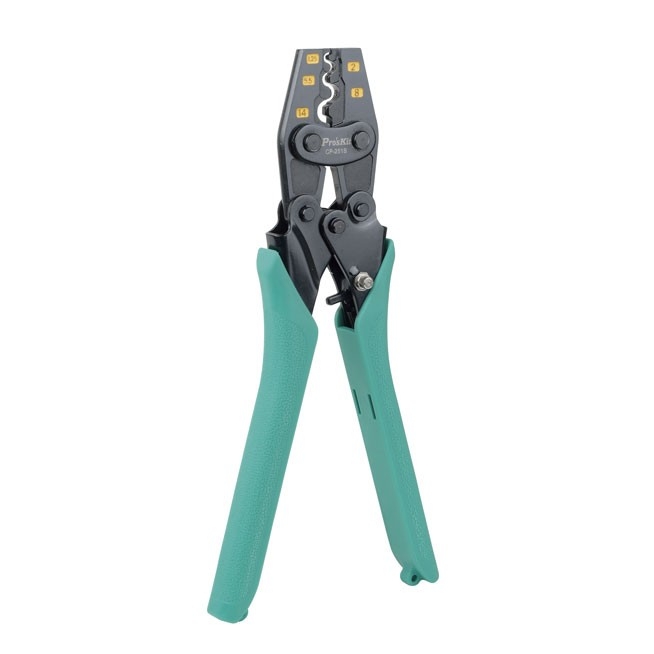

คีมย้ำหางปลาเปลือย CP-251B PRO SKIT

ModelNo.
Material
HRC
Handle
Crimperdie profile
Application
OAL(mm)
Individualpacking


CP-151B
Frame:S45CDie: AISI 4140
40- 42
TPR

Non-insulated spade/ring terminals,AWG 22-16/16-14/12/10, JIS 1.25/2.0/3.5/5.5 mm²DIN 1.5/2.5/4.0/6.0 mm²
176
Blister card


CP-251B
Frame:S50CDie: AISI 4140
45±3
TPR
Non-insulated spade/ring terminals,AWG 22-16/16-14/12-10/8/6,DIN 1.5/2.5/6.0/10/16 mm²JIS 1.25/2.0/5.5/8.0/14 mm²
245


CP-351B
Frame:S50CDie: AISI 4340
45±3
TPR
Non-insulated spade/ring terminals, AWG 8/6/4/2, DIN 10/16/25/35 mm², JIS 8/14/22/38 mm²
350


CP-353
Frame:S45CDie: AISI 4140
45±3
TPR
AWG 12-10 / 8 / 6 / 4, DIN 4-6 / 10 / 16 / 25 mm² , JIS 5.5 / 8.0 /14 / 22 mm²
332
