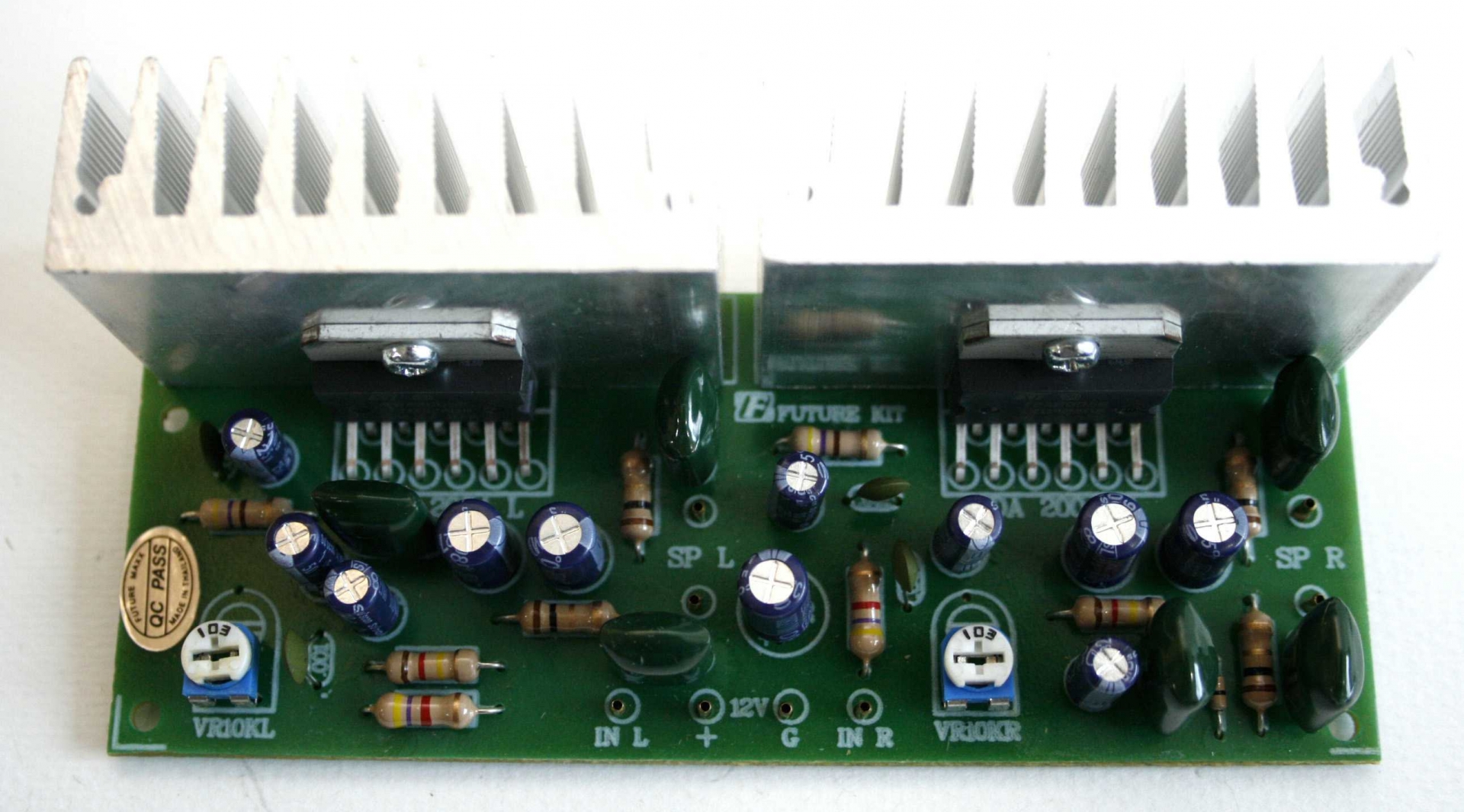

FA608 POWER AMP BTL 15+15W STEREO

Product Description
The FK605 15W + 15W audio amplifier utilizes two stereo ICs making this project easy and economical to build and suitable for students,technicians and hobbyists.Use it as an MP3 add-on,intercom,guitar practice amplifier with two input channels or in retro stereo projects. The on-board trimmer for volume controls may be substituted by an external potentiometer.
Technical Specification

Frequency Response :20Hz to 20Khz (+ 0/- 3 DB)
Total Harmonic Distortion :0.1% @ 1 Watt into 4 Ohm (1kHz)
Overload and short-circuit protected
PCB Dimensions : 4.76" x 1.89" x 2.0" (121 mm x 48.0 mm x 50.8mm)
Power Supply : 12VDC @more than 2.0Amp
Output Power : 2 x 15Watt Music Power into 4 Ohm
S/N Ratio : 80dB (A weighted)
Input Sensitivity : 150mV into 200KOhm
Gain : 30dB
