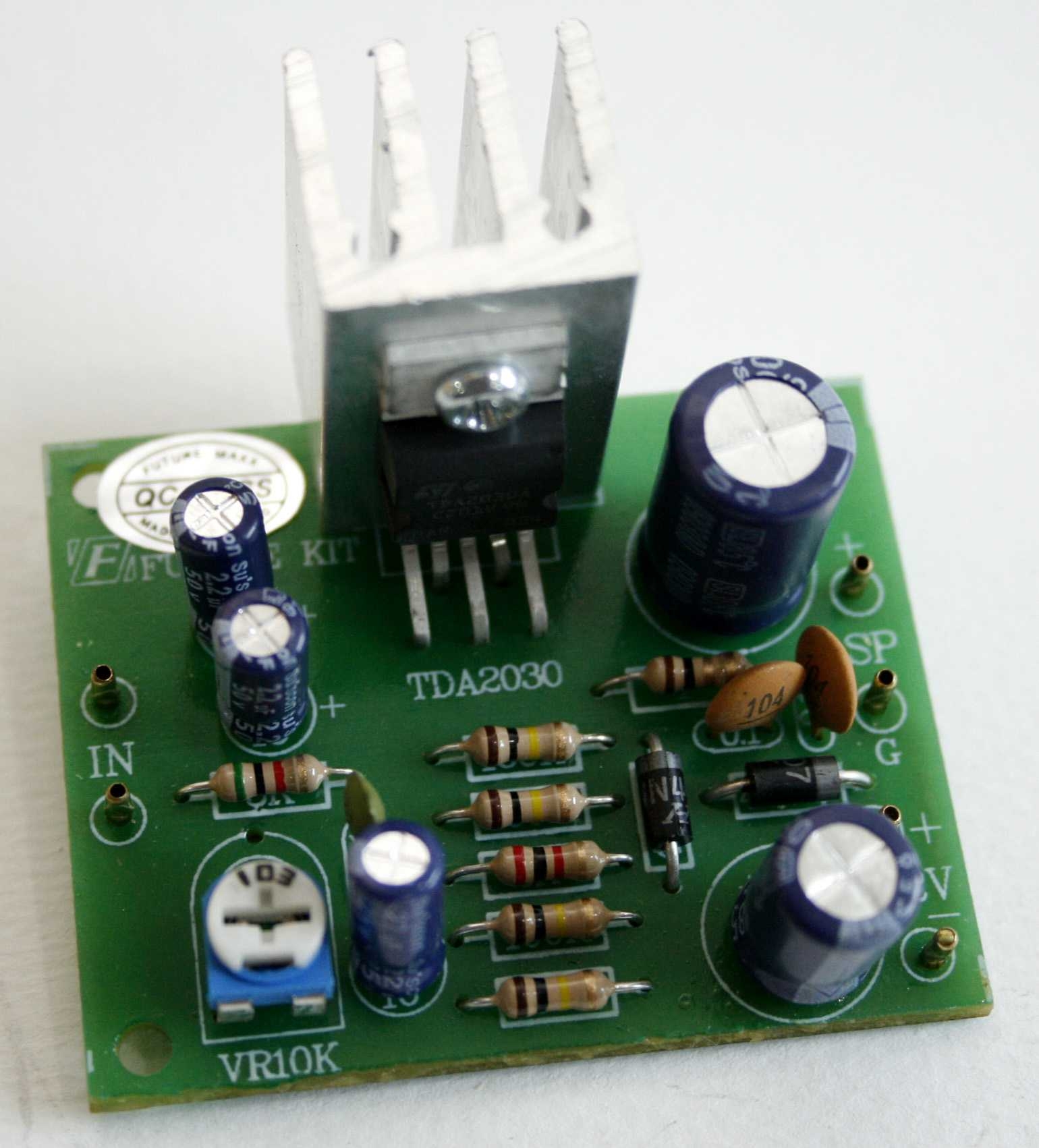

FA604 POWER AMP IC 8W MONO

Product Description
Here is an economical,general purpose 8Watt audio amplifier utilizes IC TDA2030 which features an efficient low distortion OTL output.Suitable for students, technicians and hobbyists.Use it as an MP3 add-on,intercom,guitar practice amplifier or in retro radio projects.The on-board trimmer for volume control may be substituted by an external potentiometer.
Technical Specification

Power Supply :12VDC
Maximum Load :800mA
Output Power :8Watt
S/N Ratio : 94dB (A weighted)
Total Harmonic Distortion : 0.03% @ 0.1-14Watt into 4Ohm/1kHz
Frequency Response : 20Hz-20KHz (+ 0/- 3 dB)
PCB Dimensions : 2.0" x 1.62" x 0.9" (50.8 mm x 41.1 mm x 22.0mm)
