FK674 POWER AMP 2W MONO WITH SPEAKER

Product Description

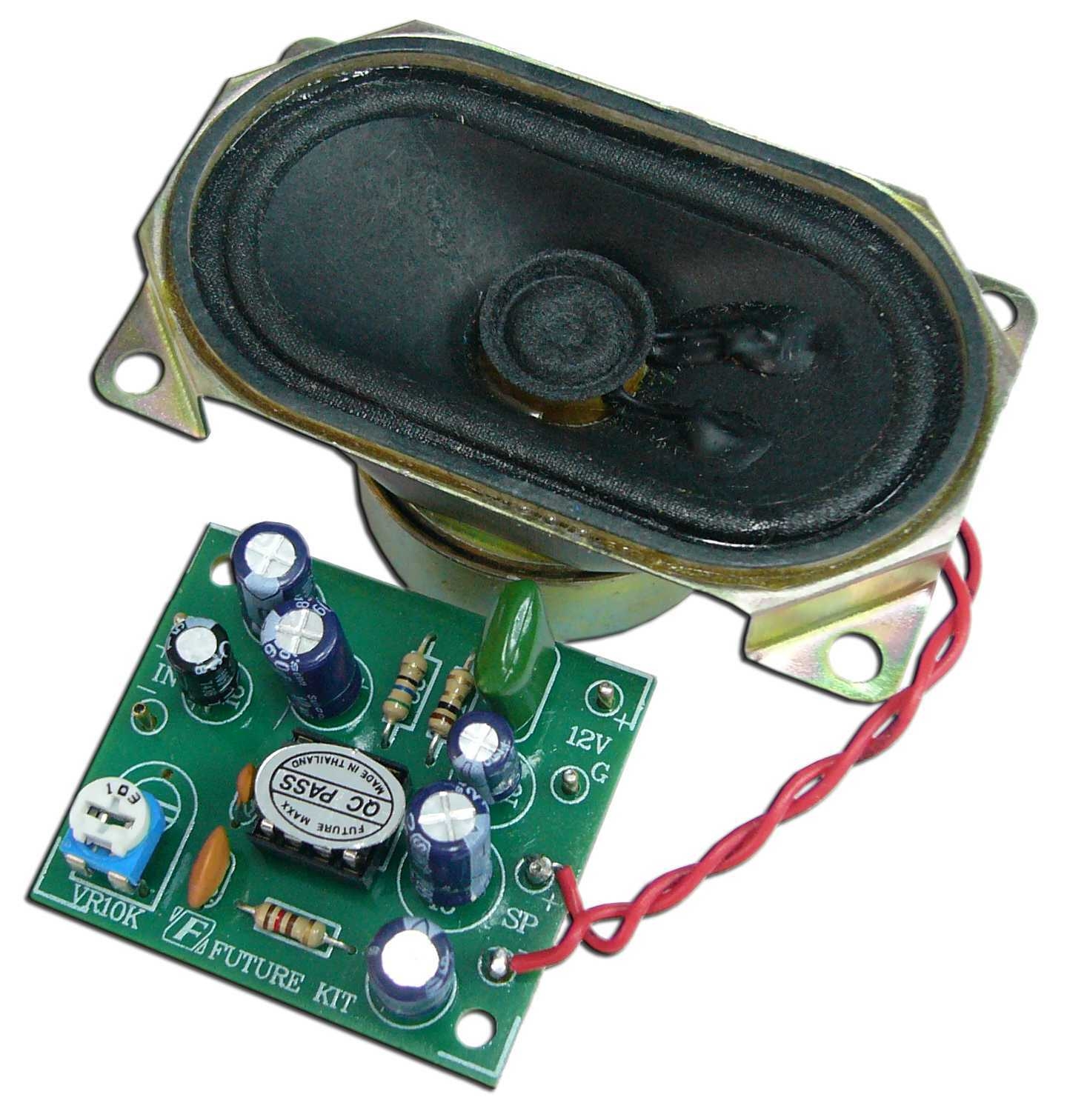

This is an economical mono amplifier and an ideal class room project.The FK674, with its supplied speaker,will find applications in radio, computer and other audio projects. Volume adjustment is by on-board trimmer potentiometers. This kit comes complete with a 3Watt 16 Ohm speaker.
Technical Specification

Power Supply : 9- 12VDC @more than 1.5Amp
Power Consumption : 300mA @12V with 0.25W 8Ohm Speaker
Output Power : 2W max into 8 Ohms Speaker
Frequency Response : 20Hz-20Khz (+0/- 3 dB)
S/N Ratio : 80dB (A weighted)
Sensitivity : 120mVeff (1Khz/500mW)
PCB Dimensions : 1.62" x 1.42" x 0.9" (41.1mm x 36mm x 22mm)
