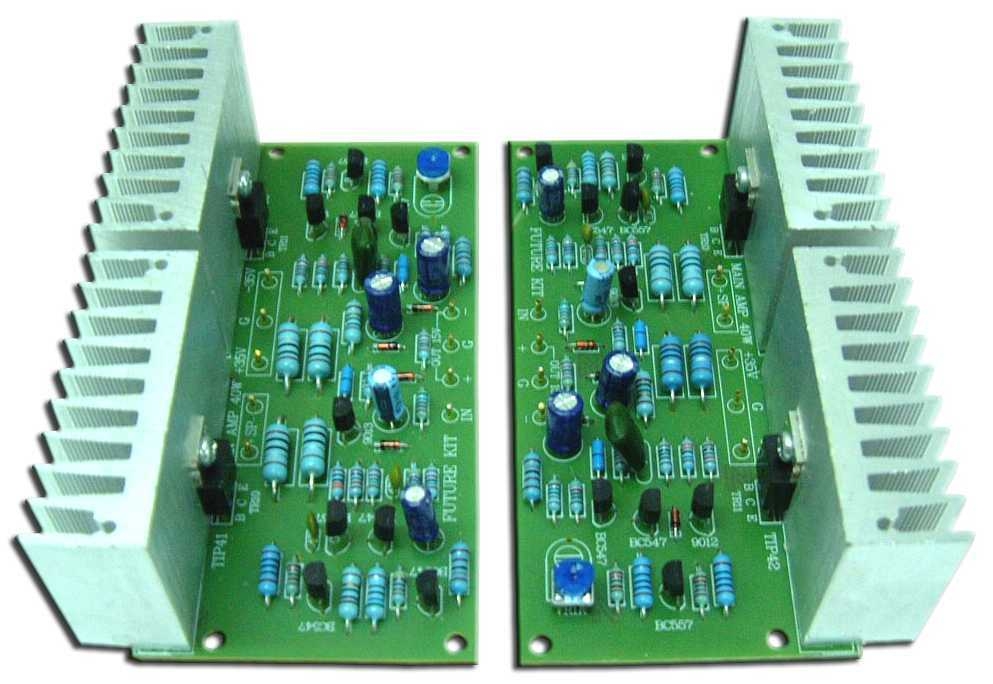

FK659 POWER AMP OCL 35+35W STEREO R1%

Product Description
This stereo, class AB amplifier is a low distortion unit that when added to a preamplifiers, mixers, and tone controls will result in an economical and powerful amplifier for public address and home entertainment.
Technical Specification

Power Supply :+35V 0V - 35V @ more than 3 Amps
Frequency Response : 10hz - 100KHz
Input Sensitivity :1Vrms
Input Impedance :15KOhm
Output Power : 35Wrms + 35Wrms.into 4 or 8Ohms.
Total Harmonic Distortion : 0.02%
PCB Dimensions : 4.74" x 4.6" x 2.8" (120.4mm x 5116.8mm x 50.8mm)
