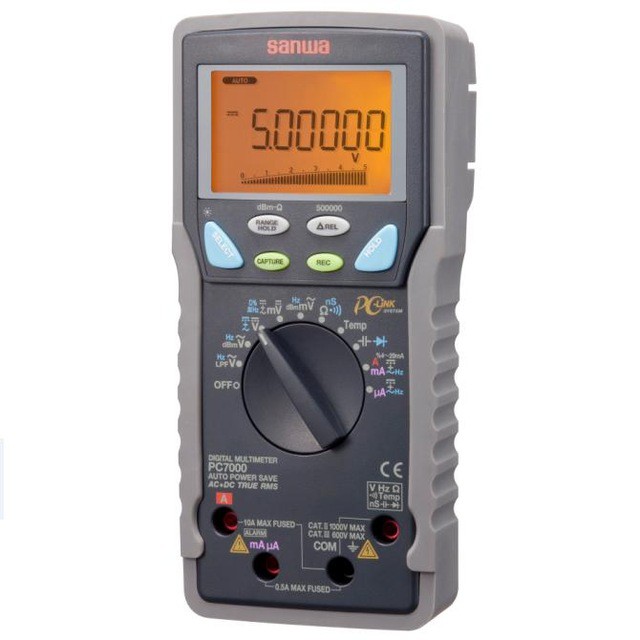

Sanwa digital Multimeter PC7000 - รุ่น TOP

Basic Features

■ 4-4 / 5digits 50000 count (Selectable 5-4 / 5 digits 500000 count for DCV)

■ Dual Display shows voltage/current and its frequency, and AC components and DC components of voltage/current

■ AC True RMS

■ Low-pass filter for variable frequency drive(VFD) circuit

■ Current (mA / μA) %4-20mA measurement

■ Capture (peak hold) 0.8ms in duration

■ MAX, MIN, AVG recording mode

■ K type temperature -50℃〜1000℃

  *Optional accessory K-AD is necessary.

  *K type temp. sensor K-250PC is included as a standard accessory.

■ Frequency measurement (AC sine wave only)

■ Logic frequency measurement, duty cycle measurement

■ Conductance measurement

■ Dual display with backlight

■ Data hold, Range hold

■ Relative value

■ Auto power saving mode (17min.) (cancelable)

■ Optical Link USB interface (optional)

Display :

numeral display 50000 & 500000 selectable, bar graph 41 segments Sampling rate : 5 times/sec. for 50000 count,1.25 times/sec. for 500000 count,60 times/sec. for bar graph Battery life : Approx. 100h (alkaline battery) at DCV range
