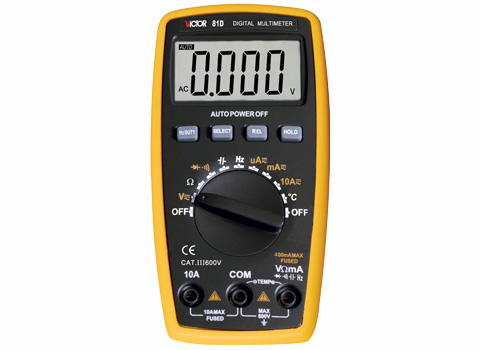

victor VC-81D Digital Multimeter

VICTOR 81D 3 3/4 Digital Multimeter

New type holster,streamline design. Unit symbol display,using more convenient . Full function protection,anti-high voltage circuit design. Restorable fuse protection circuit design.





VICTOR81D Technical data




Basic Function


Range


Basic accuracy




DC Voltage


400mV/4V/40V/400V/600V


±(0.5%+4)




AC Voltage


400mV/4V/40V/400V/600V


±(0.8%+6)




DC Current


400uA/4000uA/40mA/400mA/10A


±(1.0%+10)




AC Current


400uA/4000uA/40mA/400mA/10A


±(1.5%+10)




Resistance


400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ


±(0.8%+4)




Capacitance


4nF/40nF/400nF/4uF/40uF/100uF


±(3.5%+8)




Frequency


1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/30MHz


±(0.5%+10)




Celsius


-20-1000


±(1.0%+5)









Special Function







Diode test&Continuity buzzer


√




Low battery indication


√




Data hold


√




Auto power off


√




Function protection


√




10A fuse


√




Shockproof protection


√




self-resume fuse protection for mA


√




Unit symbol display


√




Relative value measurement


√




Duty cycle measurement


0.1%-99.9%




Input impedance


10MΩ




Sampling rate


3 times/s




AC Frequency response


(40-400)Hz




Operation way


Auto range




Max.Display


3 3/4 (3999)




LCD size


57×33mm




Battery


3V(1.5×2)









General Characters




Product color


Case: dark gray; Holster color:yellow




Product Net Weight


Approx: 200g(including battery)




Product Dimension


145×80×30mm




Standard Accessories


Test leadsbatteryinstruction manualTP01 K style temperature probe




Standard inner packing


Color box




Standard Quantity Per Carton


60 pcs




Carton size


470×325×35mm




Standard Gross Weight


Approx:20kg
