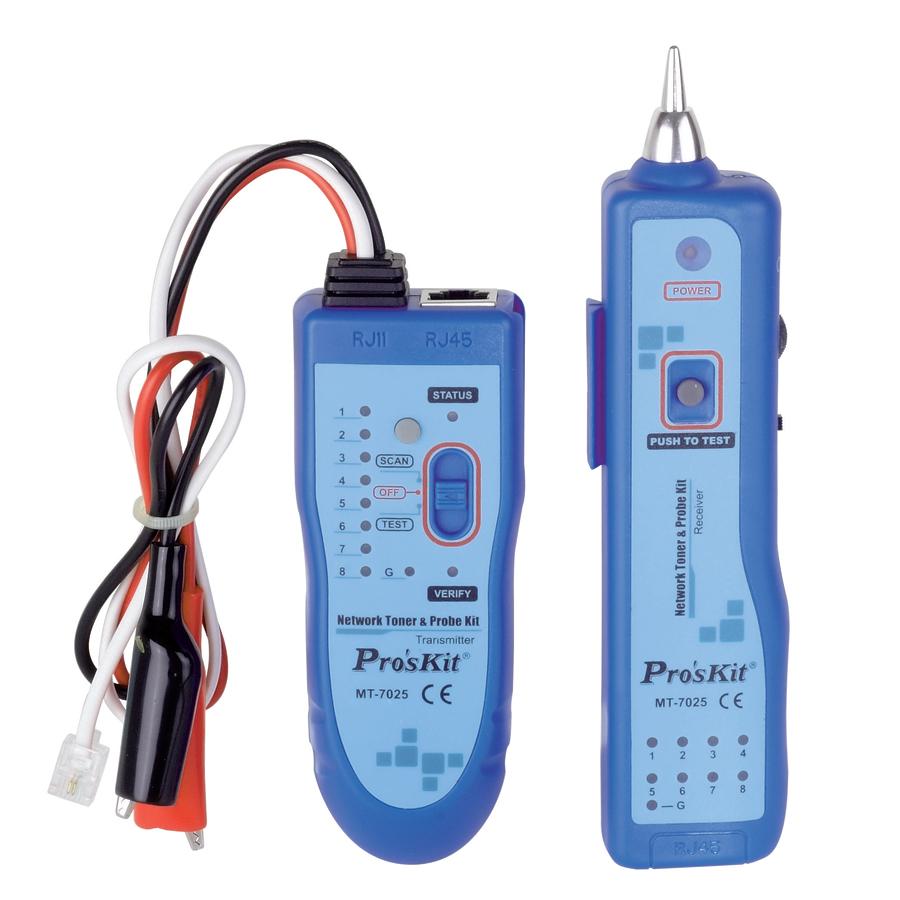

เครื่องทดสอบ/ค้นหาสาย Prokits MT-7025

Discontinued Product, please use the substitution MT-7028
เลิกผลิต ใช้ MT-7028 แทน ตาม Link เลยครับ
http://www.onebanmor.com/store/product/view/%E0%B9%80%E0%B8%84%E0%B8%A3%E0%B8%B7%E0%B9%88%E0%B8%AD%E0%B8%87%E0%B9%80%E0%B8%8A%E0%B9%87%E0%B8%84%E0%B8%AA%E0%B8%B2%E0%B8%A2%E0%B8%A3%E0%B8%B0%E0%B8%9A%E0%B8%9A%E0%B8%AA%E0%B8%B7%E0%B9%88%E0%B8%AD%E0%B8%AA%E0%B8%B2%E0%B8%A3_PROS_KIT_MT_7028-28191679-ms.html



Description

Wire tracing, LAN cable mapping, Cable status indication



Features


Locate up to 2KM long wire/cable even in a complex PC network or telephone system
Quickly diagnostic LAN cable condition and identify cable status
Scan for continuity, open, short as well as reversal and crossed wiring
Comes with LED light and earphone support enable to work in dark and noisy environment
All maintenance fields of telecommunication, networking, cable TV and more




Specifications






MT-7025 Transmitter specifications


Tone frequency
1kHz


Max. distance of transmission
2km


Max. distance of cable map
300m


Max. working current
45mA


Tone mode
ONE/TWO-note tone


Compatible connectors
RJ45(8 pin)RJ11(6P/2C)Alligator Clips


Continuity test
Yes


Max. signal voltage
8Vp-p


Function selection
3 Position mode switch


Cable map indication
8 LEDs


Shielded indication
1 LED


Phone line polarity indication
Yes


Voltage protection
AC 14V or DC 10V


Low battery display
6.0V


Battery type
DC 9.0V(NEDA 1604/ 6F22 DC9V×1pcs)


Dimension (LxWxD)
126x49x34mm








MT-7025 Receiver specifications


Frequency
1kHz


The Max. working current
90mA


Compatible connectors
RJ45(8 pin)/RJ11(6 pin)


Ear jack
1


Signal status indication
1 LED & Buzzer


Cable map indication
8 LEDs


Shielded indication
1 LED


LED illumination
1 LED


Battery type
DC 9.0V (NEDA 1604/ 6F22 DC9V×1pcs)


Dimension (LxWxD)
176x42x27mm
