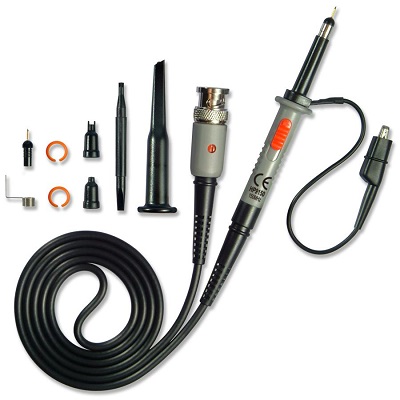

6HP-9060 Oscilloscope Probe Kit

‧ Switchable X1/X10 attenuation with reference switch positions.
‧ Break-resistant center conductor & wide compensation range.
‧ Flatter response, sharper leading edges.
‧ Faster rise time and replaceable cable probe head tip and ground lead.
‧ Max. input voltage: 600V (DC-peak AC).
‧ Includes BNC adapter, IC tip, insulating tip & trimming tool.











Model No.




Attn.




Readout




Input impedance




Band Width




Resetime




Max input V




Compensation
range







6HP-9060




x 1




No




1MΩ 91pF




6MHz




58 ns





300VDC


600VDC





NA






x 10




10MΩ 18pF




60MHz




5.8ns




10-30PF






6HP-9100




x 1




No




1MΩ 56pF




6MHZ




58 ns





300VDC


600VDC





NA






x 10




10MΩ 13pF




100MHZ




3.5ns




10-30PF






6HP-9150




x 1




No




1MΩ 56pF




6MHZ




58 ns





300VDC


600VDC





NA






x 10




10MΩ 13pF




150MHZ




2.3ns




10-30PF






6HP-9250




x 1




No




1MΩ 56pF




6MHZ




58 ns





300VDC


600VDC





10-30PF






x 10




10MΩ 13pF




250MHZ




1.4ns




10-30PF






6HP-9258




x 100




No




100MΩ 5.5pF




250MHZ




1.4ns




2000VDC




10-30PF







Readout series:







Model No.




Attn.




Readout




Input impedance




Band width




Resetime




Max input V




Compensation
range






6HP-9101R




x 10




Yes




10MΩ 13pF




100MHz




3.5ns




600VDC







10-30PF






6HP-9151R







x 10




Yes




10MΩ 13pF







150MHZ







2.3ns




600VDC







10-30PF






6HP-9251R







x 10




Yes




10MΩ 13pF







250MHZ







1.4ns




600VDC







10-30PF






6HP-


9258R







x 100




Yes




100MΩ 5.5PF







250MHZ







1.4ns




2000VDC







10-30PF
















Individual packing






Pouch
