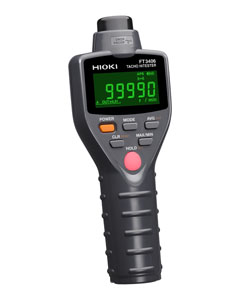

HIOKI-FT3405 Wide Range Industrial-Grade Tachometers

FT3405
FT3406


Measurement method
Non-contact: Using red visible-spectrum light and reflective tape
Contact: Using optional Contact Adapter


Measurement ranges Non-contact, AVG=ON
Rotation (r/min) : (30.00 to 199.99) to (20000 to 99990)
Rotation (r/s) : (0.5000 to 1.9999) to (200.0 to 1600.0)
Period (ms) : (0.6000 to 1.9999) to (200.0 to 1999.9)
Count : 0 to 999999


Measurement ranges Contact, AVG=ON
Rotation (r/min) : (15.00 to 199.99) to (2000 to 19999)
Rotation (r/s) : (0.2500 to 1.9999) to (200.0 to 333.00)
Period (ms) : (3.000 to 19.999) to (200.0 to 3999.9)
Count : 0 to 999999


Measurement ranges Contact, AVG=ON
Straight-line speed (meter/min) : (1.500 to 19.999) to (200.0 to 1999.9)
Straight-line speed (meter/s) : (0.0250 to 1.9999) to (20.00 to 33.30)
*Using with the Peripheral ring 9212 (option)


Accuracy
Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF)
10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF)
20000 counts or more (r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF)
Straight-line speed measurement only: ±0.5 % rdg. add to above-mentioned accuracy


Non-contact measuring detection range
50 mm (1.97 inch) to 500 mm (19.7 inch)


Display refresh rate
Approx. 0.5 to 10 times/s


Functions (FT3406 only)
N/A
[Analog output] 0 to 1 V f.s., Accuracy: ±2 % f.s., Output resistance: 1 kΩ
[Pulse output] 0 to 3.3 V, Output resistance: 1 kΩ
Can use with the AC adapter for power supply


Dust and water proof
IP50 (EN60529)
IP50 (EN60529)


Common functions
MAX/MIN display, Display hold, Average, Auto power save, Buzzer sound, Drop-proof (1 m distance onto concrete surface)


Power supply
LR6 (AA) alkaline battery ×2, Max. rated consumption 0.5 VA


Operating time
Continuous use 30 hr
Continuous use 25 hr


AC power supply
N/A
AC adapter Z1004


Dimensions and mass
71 mm (2.80 in)W × 186 mm (7.32 in)H × 38 mm (1.50 in)D, 230 g (8.1 oz) (including batteries)


Accessories
Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Carrying case ×1, LR6 (AA) alkaline battery ×2
Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Output cord 9094 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2
