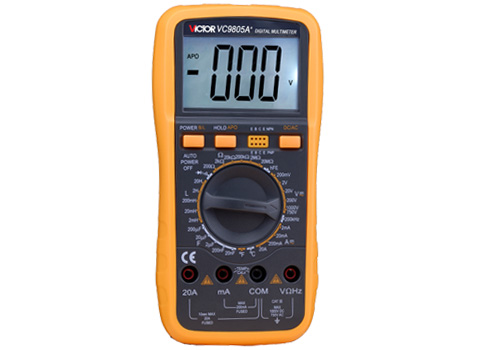

victor VC-9805A+ Digital Multimeter

VC9805A+ 3 1/2 Digital Multimeter





·New type holster, streamline design.
·Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·No power off under natural operation.
·Full function protection, anti-high voltage circuit design.
· New type battery case design, it’s easy to change battery.
.






Basic Function




Range




Accuracy






DC Voltage




200mV/2V/20V/200V/1000V




±(0.5%+3)






AC Voltage




200mV/2V/20V/200V/750V




±(0.8%+5)






DC Current




2mA/20mA/200mA/20A




±(0.8%+10)






AC Current




2mA/20mA/200mA/20A




±(1.0%+15)






Resistance




200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ




±(0.8%+3)






200/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ











Inductance




2mH/20mH/200mH/2H/20H




±(2.5%+30)






Capacitance




20nF/200nF/2uF/20uF/200uF




±(2.5%+20)






Frequency




200kHz











2kHz/20kHz/200kHz/2000kHz/10MHz




±(3.0%+18)






Celsius




(-40~1000)℃




±(1.0%+5)






Fahrenheit




(0~1832)℉




±(0.75%+5)
















Special Function






Diode




√






Transistor test




√






Continuity buzzer




√






Low battery indication




√






Hold




Data hold






Auto power off




√






Backlight




√






Function protection




√






Shockproof protection




√






Input impedance




10МΩ






Sampling rate




3 times/s






AC Frequency response




40~400Hz






Operation way




Manual range






Max. Display




1999






LCD size




70×50mm






Battery




9V (6F22)













Product color




Case: dark gray; Holster color:yellow






Product Net Weight




Approx:320g






Product Dimension




190×88.5×27.5mm






Standard Accessories




Test leads、battery、instruction manual、TP01






temperature probe(with temperature function)






Standard inner packing




Color box






Standard Quantity Per Carton




30 pcs






Carton size




396×312×433mm






Standard Gross Weight




Approx:23kg
