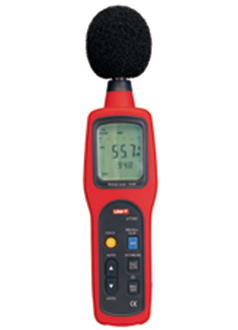

UNIT UT352 Sound Level Meters

Specifications
Range
Best Accuracy


Model

UT352


Range
30~80dB
±1.5dB


50~100dB
±1.5dB


60~110dB
±1.5dB


80~130dB
±1.5dB


Frequency
31.5Hz~8000Hz
√


Frequency Weighting
A&C
√


Sample Rate
FAST: 8 Times/s
√


SLOW: 1 Times/s
√


Features


Analogue Outputs
AC:0.707Vrms full scale;Output impedance: around 600Ω
√


DC:2Vrms full scale;10mV/dB;Output impedance: around 100Ω
√


Data Hold

√


Auto Power Off

√


Low Battery Indication
≤4.8V
√


MAX Mode

√


MIN Mode

√


Data Logging

63


High Alarm
Display "OVER"
√


Lower Alarm
Display "UNDER"
√


LCD Backlight

√


Analogue Bar Graph
30~130dB
√


General Characteristic


Power
1.5V Batteries(LR6) X 4


LCD Size
53mm X 41 mm


Product Color
Red and Grey


Product Net Weight
330g


Product Size
273mm X 70mm X 39 mm


Standard Accessories
Batteries,Windscreen,Leather Box


Standard Individual Packing
Gift Box, English Manual


Standard Quantity Per Carton
30 PCs


Standard Carton Measurement
670mm X 385mm X 300mm (0.077 CBM Per Standard Carton)


Standard Carton Gross Weight
18 Kg
