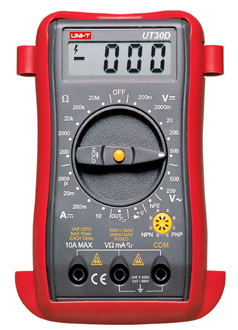

UNIT UT30D Palm-Size Digital Multimeters

Specifications
Range
Best Accuracy


Model

UT30D


DC Voltage (V)
200mV/2000mV/20V/200V/500V
±(0.5%+2)


AC Voltage (V)
200V/500V
±(1.2%+10)


DC Current (A)
2000uA/20mA/200mA/10A
±(1%+2)


Resistance (Ω)
200Ω/2kΩ/20kΩ/200kΩ/20MΩ
±(0.8%+2)


Features



Transistor

√


Diode

√


Continuity Buzzer

√


Square Wave Output

√


Low Battery Display

√


Input Impedance for DC Voltage Measurement
10MΩ
√


Data Hold

√


Max Display
1999
√


Display Backlight

√


General Characteristic


Power
9V Battery(6F22)


LCD Size
48mm×16mm


Product Colour
Red and Grey


Product Net Weight
160g


Product Size
130mm x 74mm x 41mm


Standard Accessories
Test Lead, Battery, Holster


Standard Individual Packing
Gift Box,English Manual


Standard Quantity Per Carton
60 Pcs


Standard Carton Measurement
536mm x 310mm x 305mm (0.051 CBM per standard carton)


Standard Carton Gross Weight
Around 15.86 Kg


Optional Accessories*
Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
