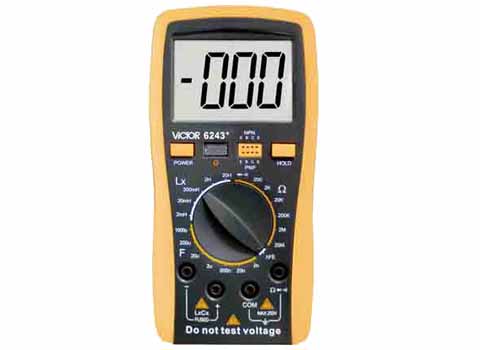

VICTOR VC-6243+ Digital Multimeter

VICTOR 6243+ 3 1/2 Digital L/R Meter





·New type holster, streamline design.
· Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Buzzer alarm, data hold, Diode and Transistor test function.









Inductance(L)




VICTOR 6243+ Capacitance/Resistance/Inductance






Range




Accuracy




Resolution Measuring frequency






2mH




±(2.0%+5d)




1uH




Approx:200Hz






20mH




10uH






200mH




100uH






2H




±(5.0%+5d)




1mH






20H




±(5.0%+15d)




10mH













Range




Accuracy




Resolution Measuring frequency






2nF




±(1.0%+5d)




1pF




Approx:200Hz






20 nF




10 pF






200 nF




100 pF






2uF




±(2.0%+5d)




1 pF






20 uF




10 pF




Approx:16Hz






200 uF




±(5.0%+5d)




100 pF






1000 uF




±(5.0%+25d)




1 pF




Approx:8Hz













Range




Accuracy




Resolution






200Ω




± (0.8%+5d)




0.1Ω






2kΩ




±(0.8%+3d)




1Ω






20kΩ




10Ω






200kΩ




100Ω






2MΩ




1kΩ






20MΩ




±(1.0%+15d)




10kΩ
