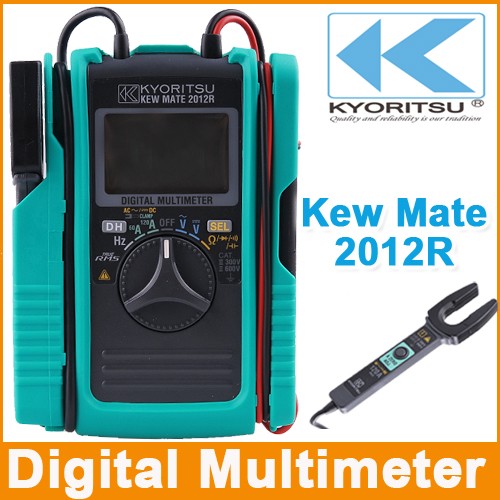

2 IN 1 Multimeter + Clamp meter ACA/DCA True RMS Kyoritsu 2012R

New Digital Multimeter 2 IN 1 Multimeter + Clamp meter True RMS2012R Selection GuideProduct CatalogueInstruction Manual •Innovative Multhimeters with current measurements up to 120A AC/DC•Unique Open Jaw technology for AC/DC current measurements•Very compact and as reliable as a tradictional full size multimeter DC V600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)±1.0%rdg±3dgtAC V6.000/60.00/600.0V (Input impedance: approx.10MΩ)±1.5%rdg±5dgt (45 ~ 400Hz)DC A60.00/120.0A±2.0%rdg±8dgt (60A)±2.0%rdg±5dgt (120A)AC A60.00/120.0A±2.0%rdg±5dgt (45 ~ 65Hz)Ω600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ±1.0%rdg±5dgt (600Ω/6/60/600kΩ)±2.0%rdg±5dgt (6MΩ)±3.0%rdg±5dgt (60MΩ)Continuity buzzerBuzzer sounds below 35±25ΩDiode test2V±3.0%rdg±5dgtOpen-loop voltage: approx. 2.7VCapacitance400.0nF/4.000/40.00µF±2.5%rdg±10dgtFrequency(AC A)100/400Hz±0.2%rdg±2dgt (100Hz)±0.1%rdg±1dgt (400Hz)(DC A)100/1000Hz/10/100/300.0kHz±0.2%rdg±2dgt (100Hz)±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)(Input sensitivityCurrent: more than 6AVoltage: more than 6V [~10kHz]/more than 20V [10k~300kHz])Conductor sizeØ12mm max.Withstand voltage3540V AC for 5 secondsApplicable standardsIEC 61010-1 CAT.III 300V, CAT.II 600V Pollution degree 2IEC 61010-031, IEC 61010-2-032, IEC 61326Power sourceR03 (1.5V) × 2*Continuous measuring time:DCV: approx. 150hours, ACA: approx. 25hours(Auto power save: approx. 15 minutes)Dimensions128 (L) × 92 (W) × 27 (D) mmWeight220g approx. (including batteries)AccessoriesR03 (1.5V) × 2, Instruction manualOptional9107 (Carrying case [Soft])
