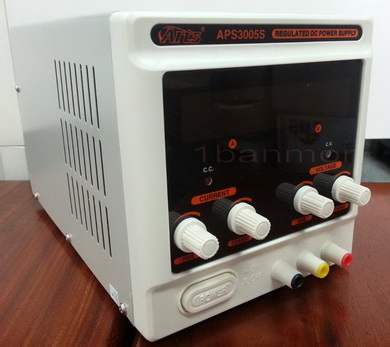

POWER SUPPLY ARTS 3005 แบบดิจิตอล ปรับ Volt 0-30- AMP 0-5a ได้

Power Supply ARTS3005 0-30DCV 0-5DCA ปรับค่าได้ละเอียด แม่นยำ แสดงผลแบบDigital 0-30DCV ความละเอียด 0.1V0-5DCA ความละเอียด 0.1Aใช้งานง่ายมี วงจร Protect อัตโนมัติOverview APS3003S/APS3005S DC power supply is a constant voltage constant current power supply and high reliability, which has a limiting pressure, short circuit protection, over temperature protection, which is widely used in factories and enterprises in the production line. Overheating operating conditions such as power, it will cut output at the output circuit when the internal temperature returns to normal, the power output to restore the default state. This machine has perfect protection function, can protect the user equipment is not being burned. Specifications 1 Power supply voltage:. 220V ± 10% 50Hz (can also be set in accordance with the requirements 110V ± 10% 60Hz) Working conditions: temperature: 0 ℃ ~ 40 ℃ Relative Humidity: <80% Storage Conditions: Temperature: -20 ℃ ~ 80 ℃ Relative Humidity: <80% Dimensions: (country) 260 * (W) 150 * (H) 160mm . 2 Technical parameters output voltage from 0 to 30V continuously adjustable output current from 0 to nominal value. continuously adjustable between load stability <= 0.3%. ripple noise <= 3mVrms (5Hz ~ 1MHz). voltage accuracy:. ± 0.5% rdg +2 words . current accuracy: ± 0.5% rdg +2 months Word Digital Resolution: Voltage 0.1V Current 0.01A high-pressure test: leakage current <= 1mA (Test conditions: Input to 1700V AC/2s) Insulation resistance: Insulation resistance> = 7MΩ (Test conditions: Input to ground 500VDC/5s)
