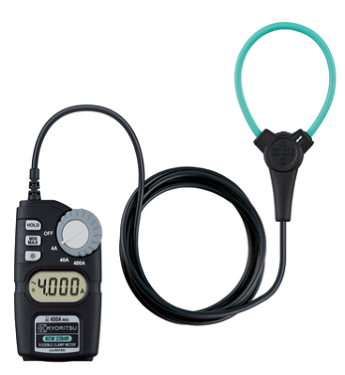

KYORITSU KEW 2204R AC Digital Clamp Meters onebanmor

AC A (RMS) Range4.000/40.00/400.0AAccuracy±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)Crest factor
(CF)Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.Conductor sizeØ70mm max.Influence of
Conductor positionAdditional ±2% (max.) depending on the distance from the center positionOverload protection500A AC for 10 secondsApplicable standardsIEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)Operating temperature
& humidity0 - +50℃,less than 80% RH (without condensation)Storage temperature
& humidity-10 - +60℃,less than 70% RH (without condensation)Power sourceR03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：approx.120hours
(Auto power off：approx.15 minutes)Dimensions120(L)×70(W)×26(D)：Display unit
φ5.5mm approx.：Cable diameter
1.8m approx.：Cable lengthWeight200g approx. (including batteries)Included Accessories9174 (Carrying case)
LR03(AAA)×2, Insruction manual
