UNI-T UT61E+ 1000Vดิจิตอลมัลติมิเตอร์มีจอแสดงผล

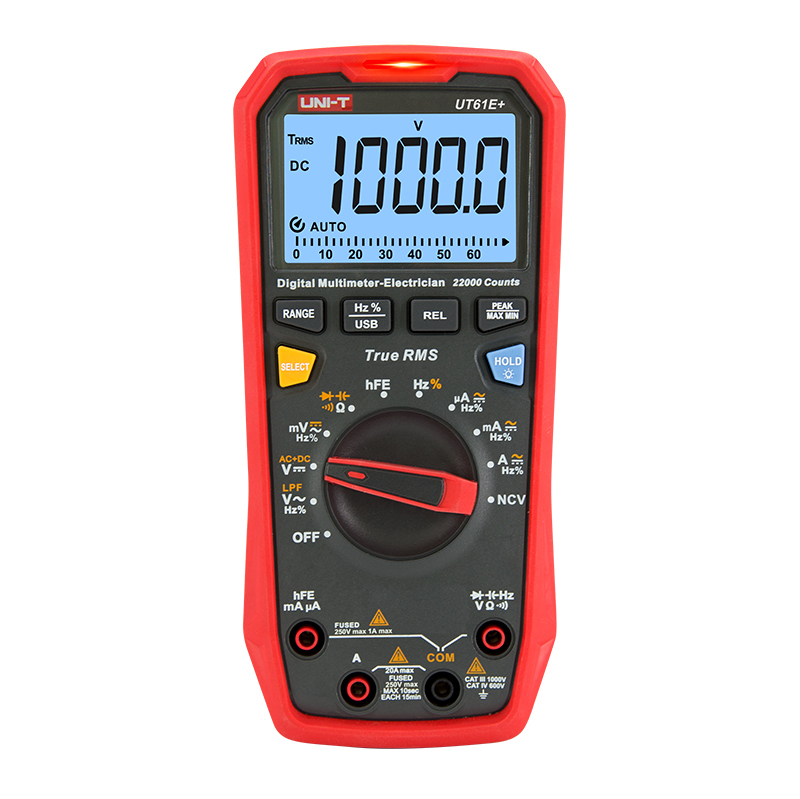

UT61E+ Digital Multimeters

Safety ratings CAT III 1000V/CAT IV 600V
AC voltage    (V)   1000V ±(0.8%＋10)
DC voltage    (V)   1000V ±(0.05%＋5)
AC current    (A)   20A ±(0.8%＋10)
DC current    (A)   20A ±(0.5%＋10)
Resistance    (Ω)   220MΩ ±(0.5%＋10)
Capacitance  (F)    220mF ±(3%＋5)
Frequency    (Hz)   220MHz ±(0.01%＋5)
Duty cycle    (%)    0.1%~99.9% ±(2%＋5)
Display count            22000
Bandwidth (Hz)          40~10kHz
LPF ACV                   √
ACV+DCV                  √
Transistor hFE            √
Peak Hold                 √
Analog bar                46
General Characteristics
Power                      1.5V battery (R03) x 4
Product net weight      350g
Product size              190mm x 90mm x 50mm
Standard accessories    Battery, gold plated test leads, USB cable,temperature
                             multi-purpose socket, English manual
Standard individual packing Gift box, cloth bag
Standard quantity per carton
Standard carton measurement 480mm x 370mm x 365mm
Optional accessories Bluetooth/APP
