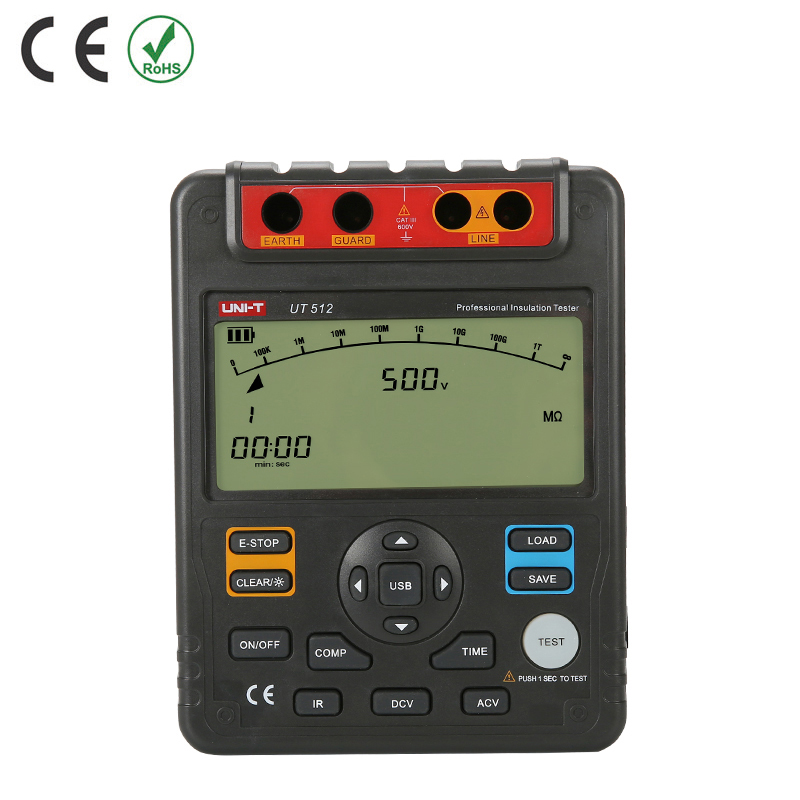

UT512 Insulation Resistance Tester
UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

UT512 Insulation Resistance Tester

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

Specifications   Range UT512
Insulation resistance (Ω) Test voltages 500V~2500V 0%~20%
500V 0.5MΩ~5GΩ ±(3%+5)
1000V 2MΩ~10GΩ ±(3%+5)
1500V 5MΩ~20GΩ ±(3%+5)
  10MΩ~100GΩ ±(3%+5)
DC voltage (V) 600V ±(2%+5)
AC voltage (V) 600V ±(2%+5)
Short-circuit current   <1.8mA
Features
Auto range/Auto power off
Low battery indication
Data storage   18
Comparison measurement
Polarization index (PI)
Dielectric absorption ratio (DAR)
USB interface
Analog bar graph   30
LCD backlight
Over-range warning
High voltage indication
Timing measurement Around 15 minutes
General Characterisitics
Power 1.5V battery (LR14) x 8
Display 123mm x 58mm
Product color Red and grey
Product net weight 1.8kg
Product size 202mm x 155mm x 94mm
Standard accessories 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB  cable, PC software CD, power adaptor
Standard individual packing Gift box, tool box, English manual
Standard quantity per carton
Standard carton measurement 505mm x 345mm x 345mm
Standard carton gross weight
