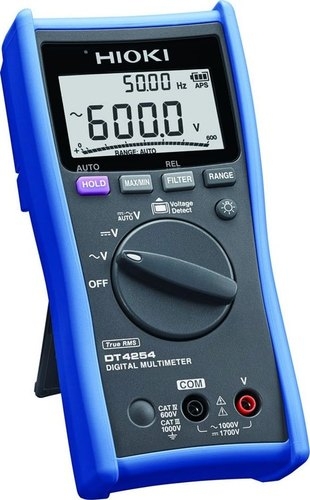

Hioki DIGITAL MULTIMETER DT4254

DC Voltage range
600.0 mV to 1500 V (*1)5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.


AC Voltage range
6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHzBasic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)


AUTO AC/DCV
Yes


Resistance range
N/A


DC Current range
N/A


From 4 to 20mA Percentage conversion display
N/A


AC Current range (use with Clamp on probes)
N/A


Temperature (thermocouples)
N/A


Voltage detection
Hi: AC40 V to 600 V,Lo: AC80 V to 600 V


Capacitance range
N/A


Frequency range
99.99 Hz to 99.99 kHz,4 ranges (limited by the minimum detectable voltage),Basic accuracy: ±0.1 % rdg. ±1 dgt.


Continuity check
N/A


Diode test
N/A


Other functions
Filter function,Display value hold,Auto hold,Max/Min/Average value display,Relative display,Auto-power save,USB communication (option)


Display
Main and Sub displays: 4-digits LCD,max. 6000 digits,bar graph


Display refresh rates
5 times/s (Capacitance measurement: 0.05 to 5 times/s,depending on measured value, Frequency: 1 to 2 time/s)


Power supply
LR03 alkaline batteries ×4,Continuous use: 130 hours (backlight OFF)


Dimensions and mass
84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D,390 g (13.8 oz) (including batteries and holster)


Accessories
Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
