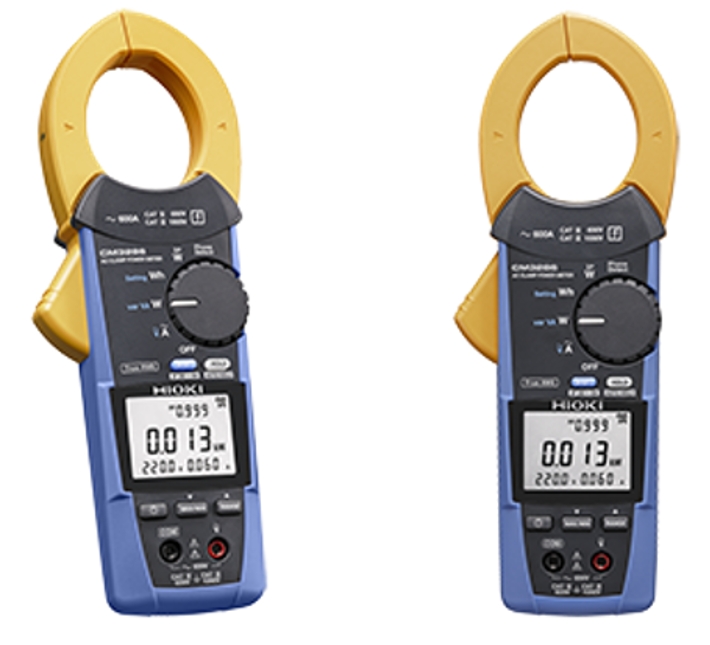

Hioki CM3286 ดิจิตอลแคลมป์มิเตอร์

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)*1) Phase angle obtained from zero cross of current/voltage. *2) Harmonics levels can be displayed with application software (GENNECT Cross)



Measurement line
Single-phase,Three-phase (balanced with no distortion)


Measurement items
Voltage,Current, Voltage/ current peak, Active/ reactive/ apparent power,Power factor,Phase angle *1,Frequency,Simple Active Energy Consumption (Single-phase) [CM3286-01 only*2] Voltage/ current harmonic levels


AC voltage range
[Measurement range] 80.0 V to 600.0 V, Single range,Basic accuracy 45 - 66 Hz: ±0.7% rdg. ±3 dgt.(Frequency characteristics: 45 to 1 kHz, True RMS)


AC current range
[Measurement range] 0.060 A to 600.0 A, 3 range,Basic accuracy:±1.3% rdg. ±3dgt. (Frequency characteristics:45 to 1 kHz,True RMS)


Power range
[Single phase] 0.005 kW to 360.0 kWBasic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)[Balanced three-phase 3-wire] 0.020 kW to 623.5 kWBasic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz,Power factor=1)[Balanced three-phase 4-wire] 0.040 kW to 1080 kWBasic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)


Harmonic levels (CM3286-01only *2)
Voltage/ current harmonic levels up to 30th, Content factor,Total harmonic distortion ratio


Other functions
[Phase angle *1] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, Max / Min / Avg value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.


Dustproof and waterproof
IP54 (EN60529) Grip, excluding leverRisk of electric shock from measured conductors increases when wet


Interface
Bluetooth® 4.0LE, display measured values on an iOS or Android device


Power supply
LR03 Alkaline battery ×2, Continuous use: 25 hr (Backlight OFF)


Core jaw dia.
φ 46 mm (1.81 in)


Dimensions and mass
82 mm (3.23in) W × 241 mm (9.49in) H × 37 mm (1.46in) D, 450 g (15.9 oz)


Accessories
Connection cord L9257 ×1, LR03 Alkaline battery ×2, Carrying case C0203 ×1, Instruction manual ×1[CM3286-01 only]Notice Regarding Equipment That Emits Radio Waves ×1
