Digitlal clamp meter Hioki 3288 -Made IN JAPAN ACA-DCA

Compact & easy, one-touch maintenance on all types of AC/DC equipment











Model 3288-20: True RMS
Use the 3288 for high current measurements such as UPS emergency batteries and train motors
Voltage, Resistance, Continuity check function











Basic specifications(Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)














3288
3288-20


DC Current
100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.


AC Current
100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),Basic accuracy: ±1.5 % rdg. ±5 dgt.
100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),Basic accuracy: ±1.5 % rdg. ±5 dgt.


DC Voltage
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.


AC Voltage
4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified)
4.4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS)


Resistance
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.


Crest factor
None
3 and under (2 at 1000 A range, 1.5 at Voltage)


Other function
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)


Display
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s


Power supply
Coin type lithium battery (CR2032) ×1, Continuous use 60 hours
Coin type lithium battery (CR2032) ×1, Continuous use 35 hours


Core jaw dia.
φ 35 mm (1.38 in)


Dimensions, mass
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)

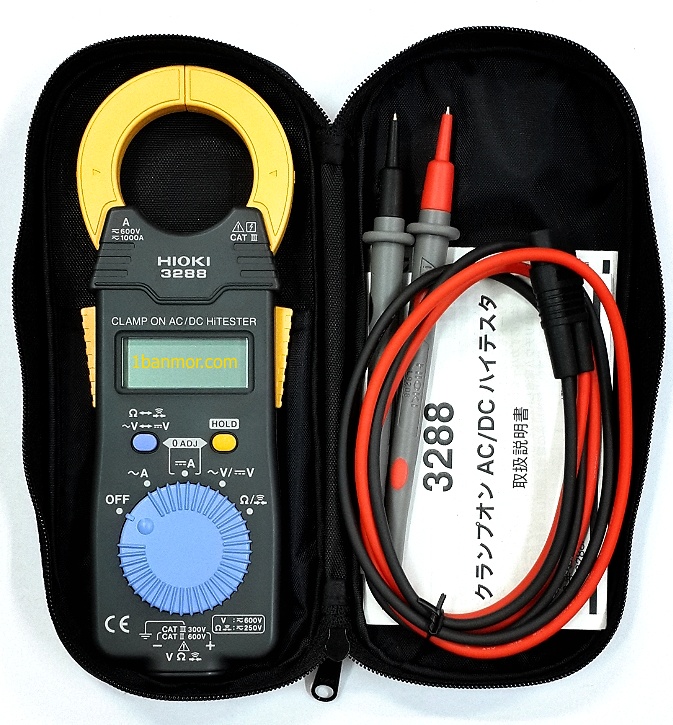

Supplied accessories
Instruction Manual ×1, TEST LEAD L9208 ×1, CARRYING CASE 9398 ×1
