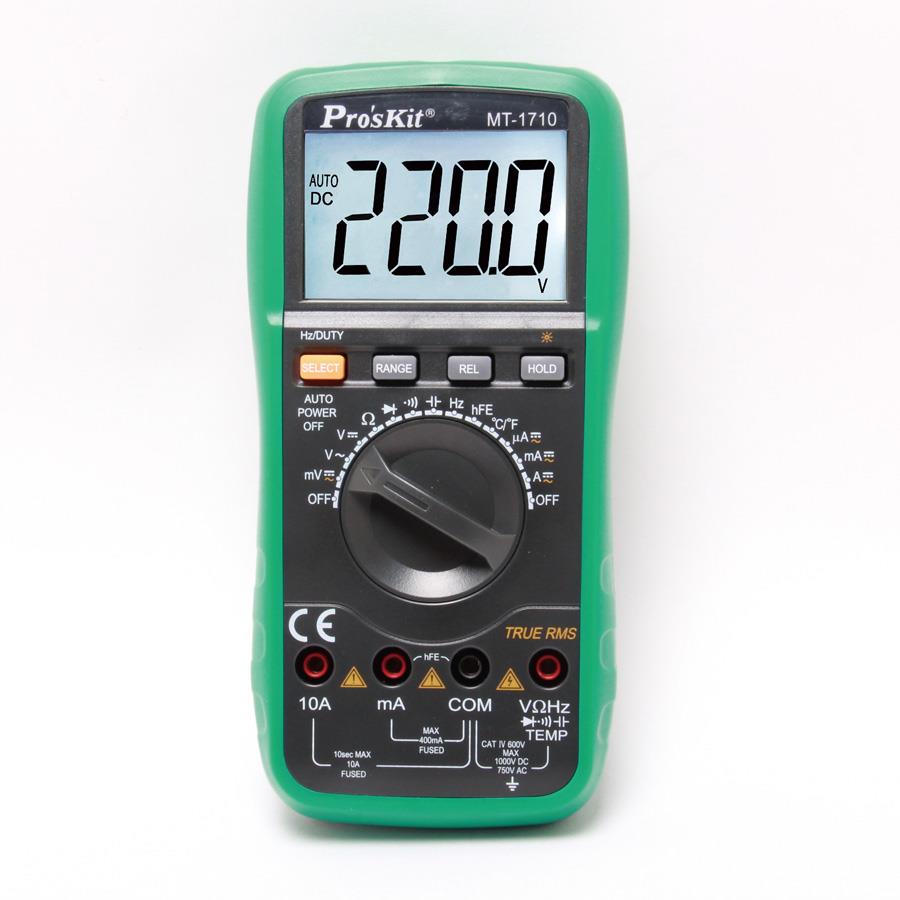

ดิจิตอลมัลติมิเตอร์ True RMS - PROS KIT MT-1710

ดิจิตอลมัลติมิเตอร์ True RMS MT-1710 PRO'S KIT




DC Voltage (V)


400m/4/40/400V (0.5%+4d)
1000V (1.0%+6d)




AC Voltage (V)
True-RMS


40~1kHz(sine and triangular wave)
and 40~200Hz(other wave)
400mV (1.6%+8d)
4/40/400/750V (1.0%+10d)
200~1kHz(other wave)
400m/4/40/400/750V (8.0%+15d)




DC Current (A)


400u/4000uA (1.0%+10d)
40m/400mA (1.2%+8d)
10A (1.2%+10d)




AC Current (A) True-RMS


40~1kHz(sine and triangular wave)
and 40~200Hz(other wave)
400u/4000u/40m/400mA (1.5%+10d)
10A (2.0%+15d)
200~1kHz(other wave)
400u/4000u/40m/400m/10A (8.0%+15d)




Resistance ()


400 (0.8%+5d)
4k/40k/400k/4M (0.8%+4d)
40M (1.2%+10d)




Frequency (Hz)


100/1000/10k/100kHz (0.5%+10d)
1M/30MHz (0.5%+10d)




Capacitance (F)


10n (5.0%+20d)
100n/1u/10u/100uF (3.5%+8d)
1/10/100mF (5.0%+10d)




Temperature (/)


-20~400 (-4~752) (1.0%+5d)
400~1000 (752~1832) (1.5%+15d)




Power source


9V (NEDA 1640/6F22) battery




Size (mm)


1909545 mm
