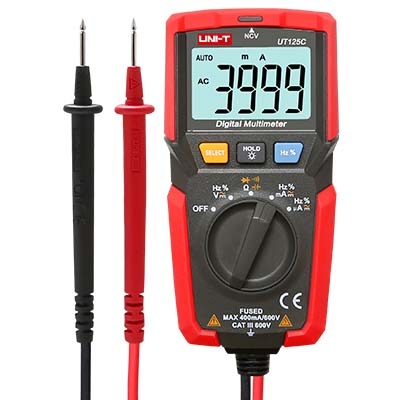

UT125C Pocket Size Digital Multimeter มัลติมิเตอร์ แบบดิจิตอล

Main features
1. Small size, easy to carry and operate
2. 600V DC/AC voltage measurement
3. 400mA DC/AC current measurement
4. Resistance/Capacitance/Diode/Continuity test
5. Frequency/Duty cycle measurement
6. CE (EMC, LVD, RoHS), cETLus
7. CAT III 600V
8. 1m drop test



Specifications
Range
Best Accuracy


DC Voltage
400mV~600V
±(0.5%+5)


AC Voltage
4V~600V
±(1.2%+5)


DC Current
400μA~400mA
±(1.8%+5)


AC Current
400μA~400mA
±(2.0%+8)


Resistance
400Ω~40MΩ
±(1.0%+5)


Capacitance
50nF~100μF
±(4%+10)


Frequency
10~60kHz
±(0.1%+5)


Duty Cycle
20%~80%
For reference only


Features


NCV
√


Diode Test
√


Continuity Test
√


Low Battery Indication
√


Data Hold
√


Auto Power Off
√


Operation Temperature
050


Safety rating
CAT III 600V


General Characteristics


Product Color
Red and grey


Product Net Weight
180g


Product Size
112 X 58 X 35mm


Standard Individual Packing
Gift Box, Manual


Standard Quantity Per Carton
60pcs


Standard Carton Size
510 X 290 X 280mm


Standard Carton Gross Weight
13.1kg
