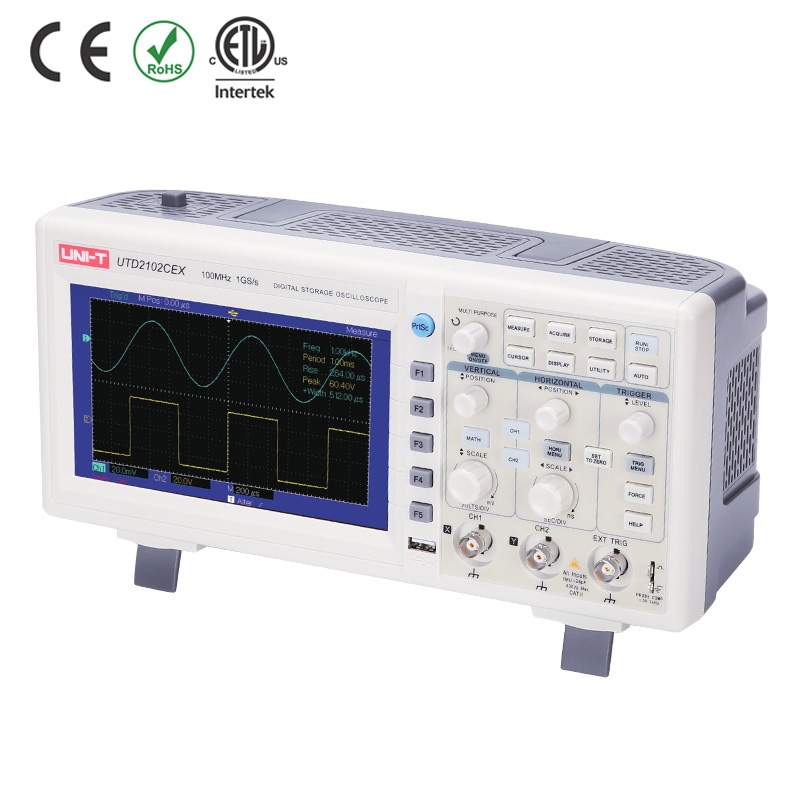

UNI-T UTD2102CEX ออสซิโลสโคป

Specifications
UTD2102CEX


Channels
2


Bandwidth
100MHz


Sample Rate
1GS/s


Rise Time
≤3.5ns


Memory Depth
25kpts


Waveform Acquisition Rate
≥2000wfms/s


Vertical Sensitivity (V/div)
1mV/div~20V/div


Timebase Range (s/div)
2ns/div~50s/div


Storage
Setup, Wave, Bitmap


Trigger Modes
Edge, Pluse, Alternate


Interface
USB OTG


General Characteristics


Power
100-240VAC, 45-440Hz


Display
7 inches 64k Color TFT LCD, 800×480


Product Color
White and grey


Product Net Weight
2.2kg


Product Size (W×H×D)
306mm ×147mm × 122mm


Standard Accessories
Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD


Standard Individual Packing
Gift Box, English Manual


Standard Quantity Per Carton
2pcs


Standard Carton Measurement (L×W×H)
450mm× 420mm × 280mm


Standard Carton Gross Weight
8.5kg


Optional Accessories
LA Module
