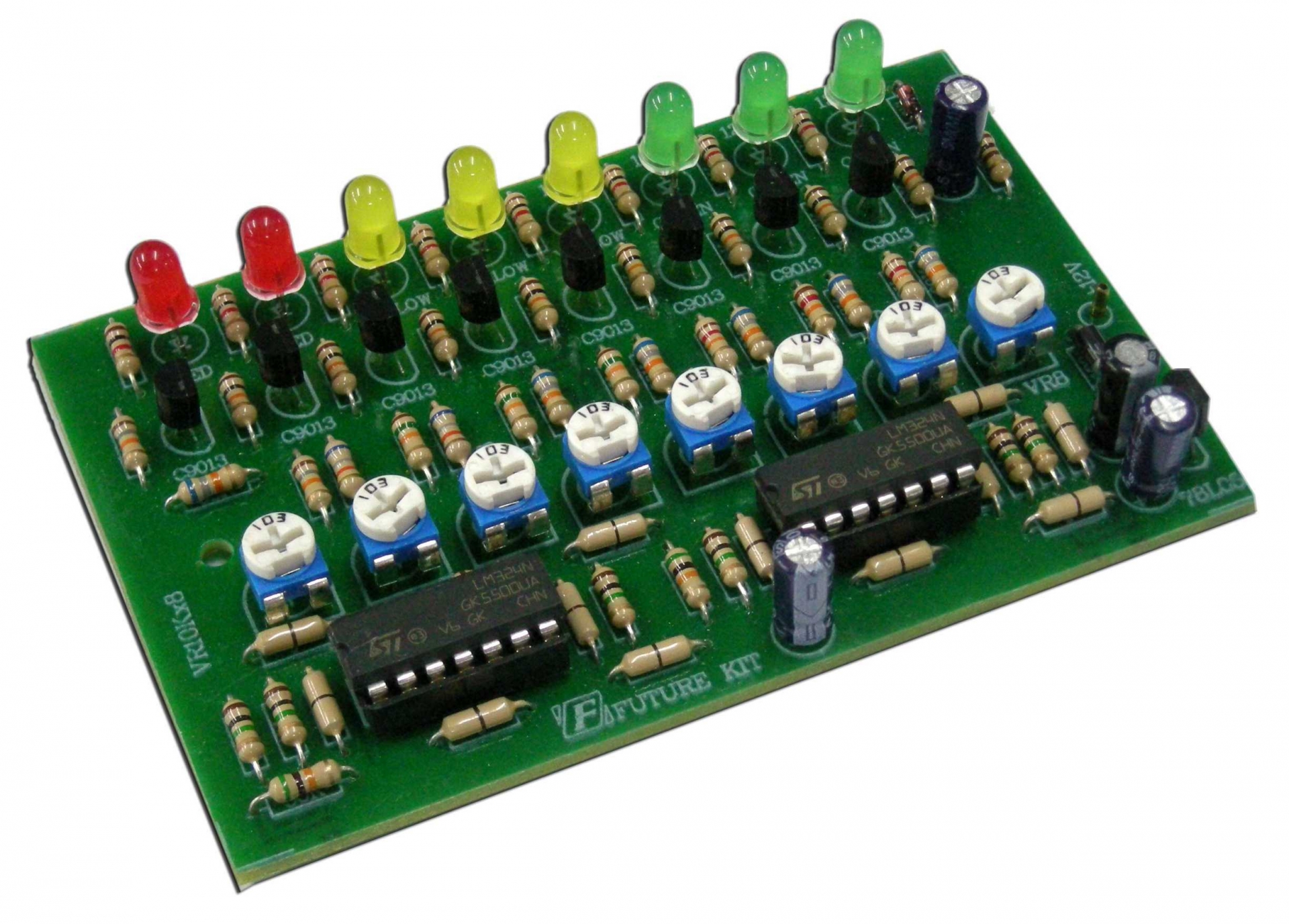

FK939 12V BATTERY CHECKER 8 LED

Product Description
This checker is used for measuring the voltage of a 12V battery whilst under load conditions. In applications where fans, pumps and lights are powered by battery or are battery backed up,the FK939 gives a continuous readout of battery condition through its 8 LED display.This assists is detecting when batteries are discharging to critically low levels so that operators can take action to prevent battery damage from over-discharge.The FK939 incorporates short circuit protection and trimmer adjustment for each displayed voltage level.
Technical Specification

Power Supply : 12V @ 56mA max.
PCB Dimensions : 3.79" x 2.47" x 0.6" (96.3mm x 62.7mm x 15mm)
Display : 8 LEDs
Recommended Housing : FB13
