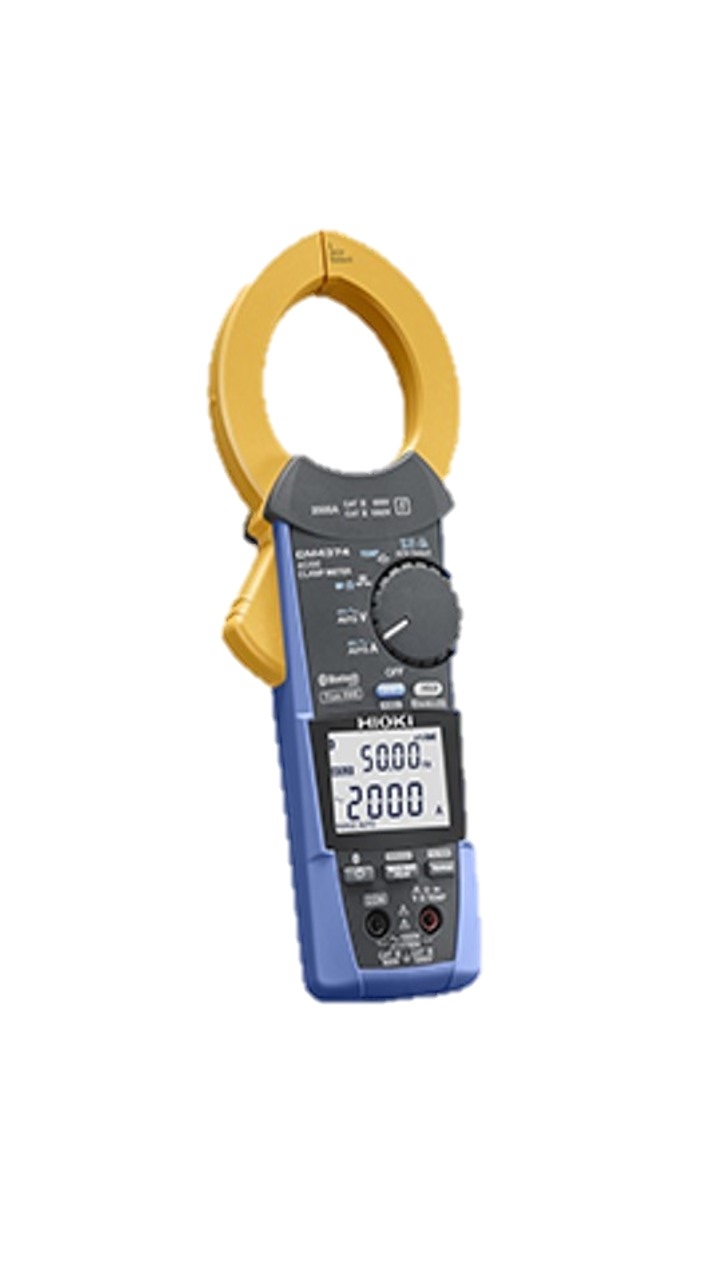

Hioki CM4374 ดิจิตอลแคลมป์มิเตอร์

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)



DC Current
600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600A range)


AC Current
600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±0.3 A (600A range)


Crest factor
600.0 A range: 3 or less, 2000 A range: 2.84 or less


DC+AC Current
600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 600 A)


DC Voltage
600.0 mV to 1500 V, 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)


AC Voltage
6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt.


DC+AC Voltage
6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt.


Resistance
600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt.


Electrostatic capacity
1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt.


Frequency
9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt.


Temperature (K)
-40.0 to 400.0 C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 C


Voltage detection
Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz


Other functions
Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment


Dustproof, waterproof
Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet.


Interface
Bluetooth® 4.0LE (Bluetooth® SMART), Supported devices: iOS 8 or later, Android™ 4.3 or later smartphone/tabletGENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function


Power supply
LR03 Alkaline battery ×2, Continuous use: 24 hr (Backlight OFF, Bluetooth® ON), 45 hr (Backlight OFF, Bluetooth® OFF)


Core jaw diameter
92 mm (3.62 in) W×18 mm (0.71 in) D, φ55 mm (2.17 in)


Dimensions and mass
65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz)


Accessories
TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1





Countries and regions where wireless operation is currently supported (CM4372, CM4374)Last up date: Apr. 28, 2017



Wireless certification
Japan, United States, Canada, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Thailand, Singapore, Korea, Australia, New Zealand, Chile, and Serbia


Exempt from the wireless regulations
Viet Nam, Hong Kong, Macao, India, Russian Federation, Colombia, Pakistan, Vanuatu, and Peru
