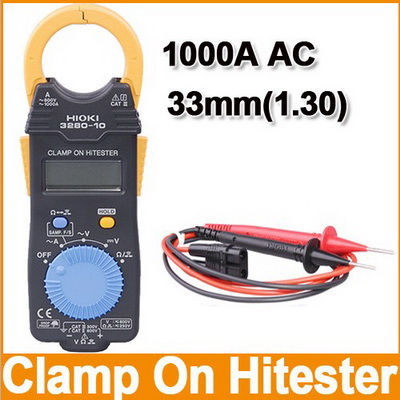

Digitlal clamp meter Hioki 3280-10 -Made IN JAPAN วัดค่าได้สูงถึง 1000A แม่นยำ สุดคุ้มค่า ทนทาน Shock Proof ทนแรงกระแทกได้ 1เมตร

สินค้าเลิกผลิต
Discontinued Product

ใช้ตัว 3280-10F แทน
Please use 3280-10F as substitution.

https://www.onebanmor.com/store/product/view/Hioki_3280_10F_%E0%B8%A3%E0%B8%B8%E0%B9%88%E0%B8%99%E0%B9%83%E0%B8%AB%E0%B8%A1%E0%B9%88%E0%B8%A5%E0%B9%88%E0%B8%B2%E0%B8%AA%E0%B8%B8%E0%B8%94_%E0%B8%A7%E0%B8%B1%E0%B8%94%E0%B8%81%E0%B8%A3%E0%B8%B0%E0%B9%81%E0%B8%AA%E0%B9%84%E0%B8%94%E0%B9%89_1000A_%E0%B9%81%E0%B8%A5%E0%B8%B0%E0%B8%AA%E0%B8%B9%E0%B8%87%E0%B8%AA%E0%B8%B8%E0%B8%94_4199A%E0%B9%80%E0%B8%A1%E0%B8%B7%E0%B9%88%E0%B8%AD%E0%B9%83%E0%B8%8A-28318447-th.html



Digitlal clamp meter Hioki 3280-10 -Made IN JAPAN วัดค่าได้สูงถึง 1000A แม่นยำ สุดคุ้มค่า ทนทาน Shock Proof ทนแรงกระแทกได้ 1เมตร Auto Range

วัดค่า
ACA ได้ถึง 1000A
ACV 600 V
DCV 600 V
OHM 42 M ohms

สินค้าผลิตในประเทศญี่ปุ่น แท้ 100%





Main Features


1000 A rms, clamp aperture: 33 mm(1.30 in) dia.
Light 100 g(3.5 oz), and Slim 16 mm(0.63 in)
Independent-opening double-lever design
Slim body design, allows easy clamping even for narrow conductors
No metal (iron core) exposure, ensuring enhanced safety




Specifications





AC Current range:


42.00 to 1000 A AC, 3 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value




AC Voltage range:


4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value




DC Voltage range:


420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)




Resistance:


420.0 to 42.00 M-ohm, 6 ranges




Accuracy:


±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range)




Continuity:


420.0 ohm (Buzzer sounds at approx. 50 ohm or less)




Analog Output:


None




Frequency characteristics (at AC current / voltage):


50 or 60 Hz




Display Section:


Digital / LCD, maximum 4199 dgt.




Max. Circuit Voltage:


600 V AC rms (insulated wire)




Power Supply:


CR2032 (3 VDC) × 1, Continuous use 150 hours




Core jaw dia.:


Ø33 mm(1.30 in)




Dimensions:


57 mm(2.24 in)W × 175 mm(6.89 in)H × 16 mm(0.63 in)D







Package Including


1 x Hioki 3280-10 Clamp Meter
1 x Test Lead
1 x BAG
1 x Instruction Manual
