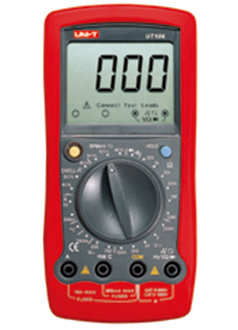

UT106 Handheld Automotive Multi-Purpose Meters

Specifications
Range
Best Accuracy


Model

UT106


DC Voltage (V)
200mV/2V/20V/200V/1000V
±(0.5%+2)


AC Voltage (V)
200V/750V
± (0.8%+5)


DC Current (A)
200mA/10A
± (0.8%+5)


Resistance (Ω)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
± (0.8%+5)


Frequency (Hz)
2kHz
±(2%+5)


Temperature (°C)
-40°C ～ 1000°C
±(2%+8)


Features


Display Count

2000


Manual Range

√


Diode

√


Continuity Buzzer

√


Low Battery Indication

√


Data Hold

√


Input Protection

√


Input Impedance for DCV
Around 10MΩ
√


Dwell
4CYL/6CYL/8CYL
±(3%+5)


Tach
4CYL/6CYL/8CYL
±(3%+5)


General Characteristic


Power
9V Battery（6F22)


LCD Size
60mm X 54 mm


Product Color
Red and Grey


Product Net Weight
351g(Including Holster)


Product Size
179mm X 88mm X 39mm


Standard Accessories
Battery, Test Lead，Holster，Point Contact Temperature Probe


Standard Individual Packing
Gift Box, English Manual


Standard Quantity Per Carton
40 PCs


Standard Carton Measurement
645mm×450mm×340mm (0.0987 CBM Per Standard Carton)


Standard Carton Gross Weight
24.6 Kg
