Specifications

Technical Data
Display 2.8” TFT (320×240)
IR resolution(Pixels) 256×192
Super resolution(Pixels) √ (512×384)
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤25Hz
Thermal sensitivity(NETD) ≤50mK
Focus Focus Free
Field of view(FOV) 56°(H) × 42°(V)
Spatial resolution(IFOV) 3.75mrad
Temperature measurement range  -20℃~550℃
Accuracy 20℃~120℃, ±1.5℃ or ±1.5% whichever is greater
-10℃~20℃, 120℃~550℃, ±2℃ or ±2% whichever is greater
Functions
Color palette White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image mode Thermal, Visual image, T-Mix fusion, PIP
On screen analyzer 5 Points/3 Rectangles
HI/LO temperature alarm LCD animation, LED flashlight, Buzzer
HI/LO temperature tracking
Digital camera resolution 2MP
Video recording
Wi-Fi/Wi-Fi live streaming
LED lighting
Analysis software PC+APP
General Characteristics
Battery 5000mAh rechargeable Li-ion battery
Operating time ≥7 hours
USB Type-C
Storage Built-in 32GB
Image/video storage format JPG/MP4
Protection IP65 & 2m drop proof
Certificates CE, FCC, RoHS
Languages EN, FR, DE, IT, ES, SV, PL, CZ
Weight 600g
Dimension 236mm×75.5mm×86mm
Packing Details
Standard accessories Type-C USB cable, Quick Start Guide, Download Operation Guide
Standard individual packing Gift box
Standard Qty per carton 10pcs
Standard carton size 500mm×315mm×295mm
Standard carton G.W. 11.2kg

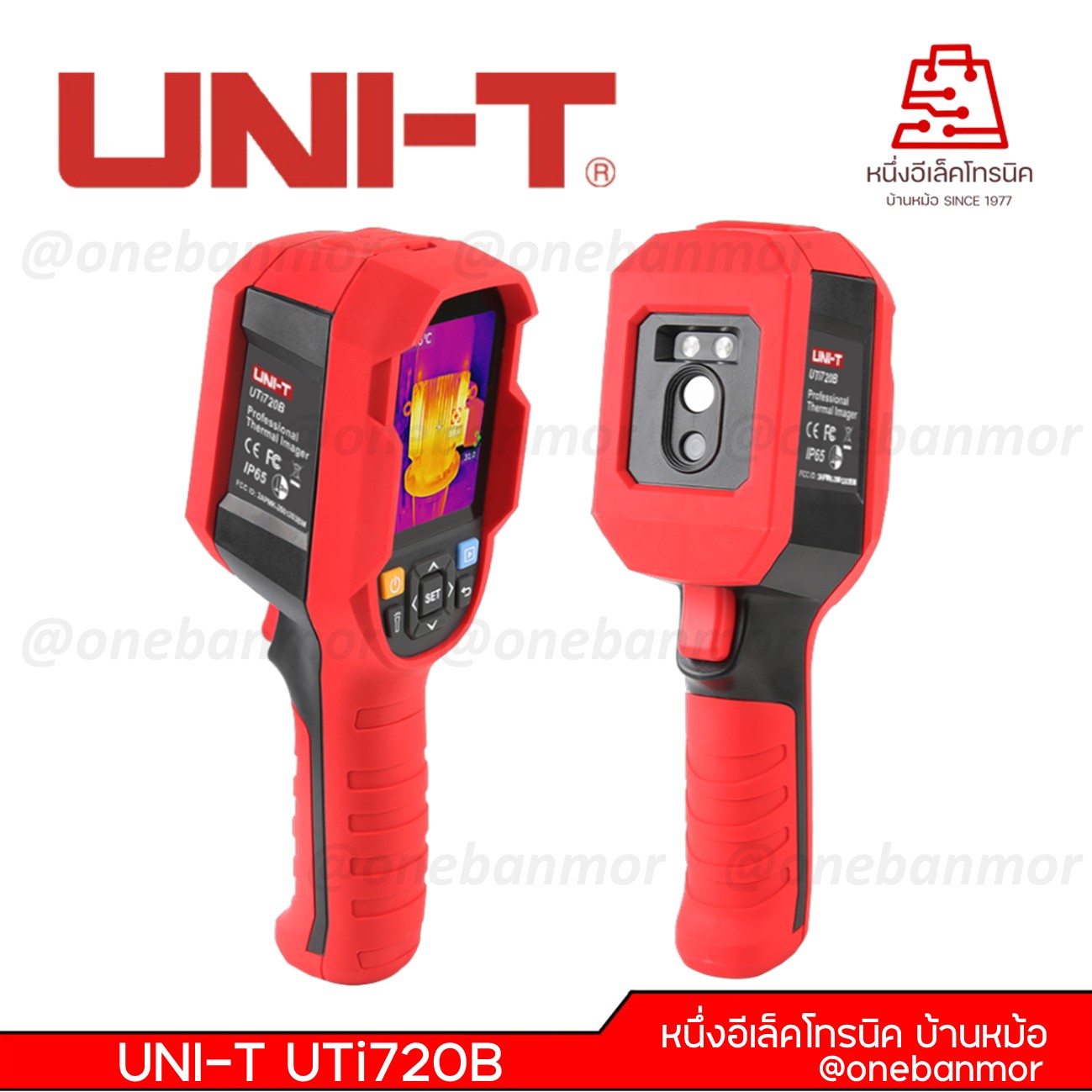

UNI-T UTi720B กล้องถ่ายภาพความร้อนสำหรับงานหนัก @onebanmor
UNI-T UTi720B กล้องถ่ายภาพความร้อนสำหรับงานหนัก @onebanmor
UNI-T UTi720B กล้องถ่ายภาพความร้อนสำหรับงานหนัก @onebanmor
