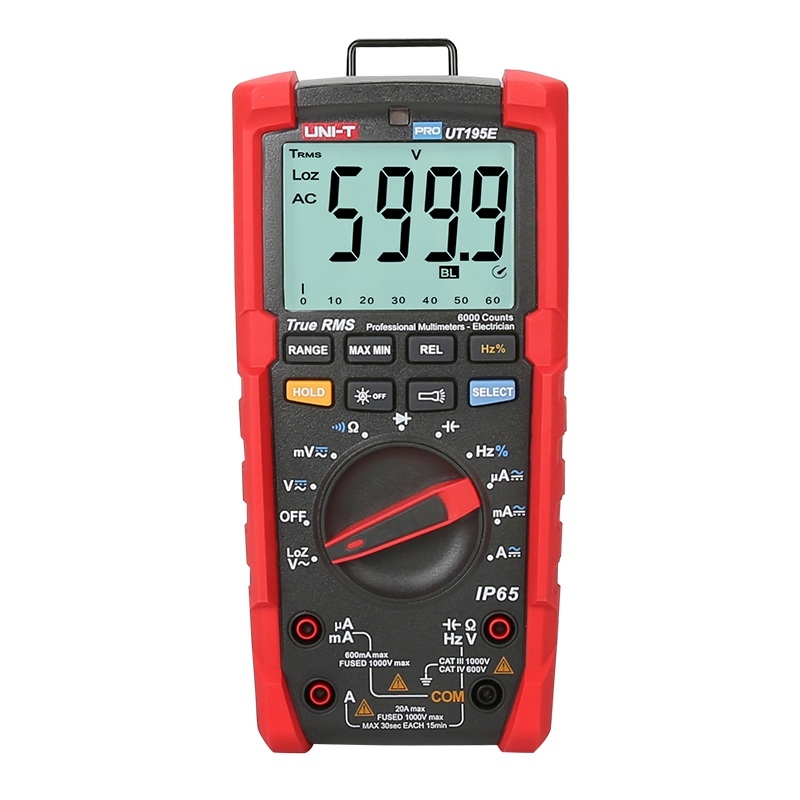

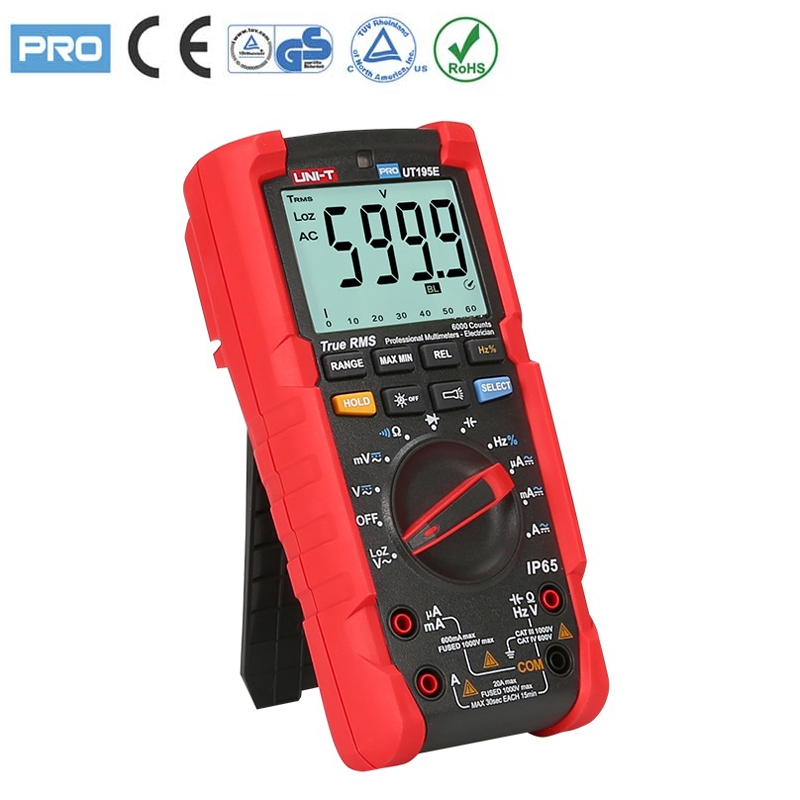

UT195E Series Professional Multimeters มัลติมิเตอร์ระดับมืออาชีพ ความแม่นยำสูง

Specifications
Range
Best Accuracy


Model

UT195E


DC voltage
600mV ~ 1000V
±(0.5%+3)


AC voltage
600mV ~ 1000V
±(1.0%+3)


LoZ ACV
600.0V
±(2.0%+3)


DC current (A)
600.0μA ~ 20A
±(0.8%+3)


AC current (A)
600.0μA ~ 20A
±(1.0%+3)


Resistance (Ω)
600.0Ω ~ 60.00MΩ
±(0.8%+2)


Capacitance
6.000nF ~ 60.00mF
±(3%+5)


Frequency
60.00Hz ~ 10.00MHz
±(0.1%+4)


Duty ratio
0.1% ~ 99.9%
±(2.0%+5)


Features


Display count

6000


Display interface (HTN)

Single display


Measurement sampling rate
times/s
3


Analog bar sampling rate
times/s
10


Analog bar
31 bars
√


True RMS

√


AC voltage frequency response

45 ~ 400Hz


AC current frequency response

45 ~ 400Hz


Diode/Continuity test

3.5V


Auto/Manual range
√


Auto power off
√


Continuity buzzer
√


Low battery indication
√


Data hold
√


MAX/MIN
√


Function selection
√


Flashlight
√


Auto backlight
√


Operating temperature
0 °C ~40 °C


2m drop test
√


Safety rating
IP65


General Characteristics


Power supply
9V battery (6F22/6LR61)


LCD size
66mm×51mm


Device color
Red and grey


Device weight
450g


Device size
206.5mm×95.5mm×61mm


Standard accessories
Test probes,battery,carrying bag


Standard individual packing
Gift box, blister,English manual (German,French,Spanish optional)


Standard quantity per carton
10pcs


Standard carton size
605mm×335mm×405mm


Stanard carton gross weight
11.8kg
