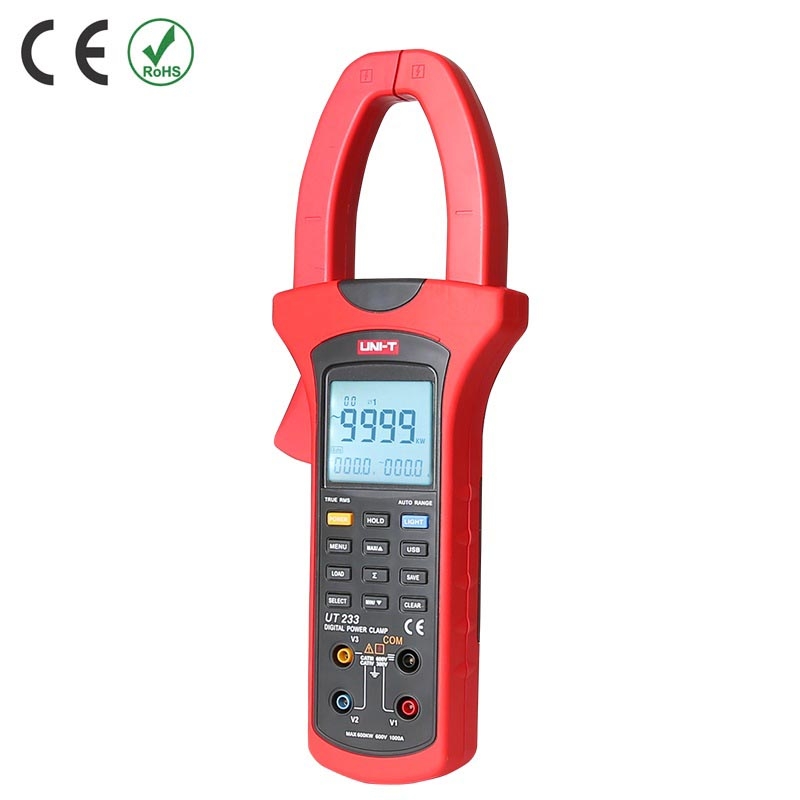

UNI-T UT233 3Phases Power Clamp meter

UT233 is an intelligent, handheld and stable power and harmonics clamp meters, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more.







Specifications
Range
UT233


AC current (A)
1000A
±(2%+5)


AC voltage (V)
600V
±(1.2%+5)


Active power (W)
0.01kW~600kW
±(3%+5)


Apparent power (VA)
0.01kVA~600kVA
±(3%+5)


Reactive power (VAr)
0.01kVAr~600kVAr
±(4%+5)


Power factor
0.3~1
±0.022


Phase angle (°)
0°~360°
±1°


Active energy (Wh)
1kWh~9999kWh
±(3%+2)


Features


Display count

10000


Auto range

√


Jaw opening

50mm


True RMS
AC voltage/AC current
√


Auto power off

√


Low battery indication

√


Data hold

√


MAX/MIN

√


Data storage

99


USB interface

√


LCD backlight

√


Full icon display

√


Single-phase 2-wire

√


3-phase 3-wire

√


3-phase 4-wire

√


Phase sequence test
Positive phase, reverse phase, phase deficiency
√


Auto calibration

√


Input impedance for DCV

≥10MΩ


General Characterisitics


Power
1.5V battery (R6) x 4


Display
46mm x 42mm


Product color
Red and grey


Product net weight
601g


Product size
303mm x 112mm x 39mm

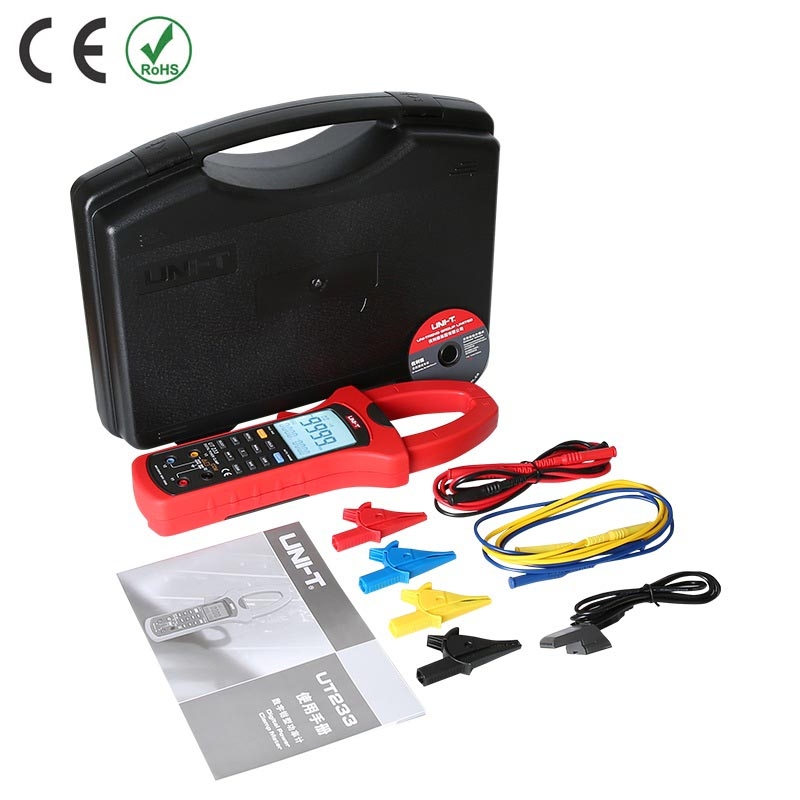

Standard accessories
Batteries, test leads, alligator clips, USB interface cable, PC software CD


Standard individual packing
Gift box, English manual


Standard quantity per carton
5pcs


Standard carton measurement
510mm x 375mm x 320mm


Standard carton gross weight
12.9kg
